P0.7 COB LED Screen Factory Manufacturer Supplier
P0.7 COB LED Screen Pixel Pitch P0.78125mm LED Panel Size 600X337.5mm
Application:
Mirco series 600X337.5mm P0.78125mm LED display is ultra thin, light weight, perfect HD 4K image quality, suitable for for high profile hotels, securities companies, schools, conference room, public security, shopping centers and other fields.
Features and Advantages:
– P0.78125mm 4 in 1 with Ultra HDresolution, 2K,4K,8K,16K supported
– P0.7 COB LED Screen Cabinet Smart design
Die-casting Alumium cabinet sctructure with CNC high-precision processing, Flatness of Cabinet≤0.1mm,
Screwless design for faster and more secure installation,Super silent fanless design make cabinets seamless splicing
– P0.7 COB LED Display Front Mainteance
Can be applied to different installation environments. wall mounted, standing,handing…
– Ultra HD 2K,4K,8K,16K Perfect Picture Quality, Exclusive Visual Performance
– P0.7 LED Screen High refresh rate and grey scale
Refresh rate >=3840hz, grey scale 16bits, High quality image/video presentation

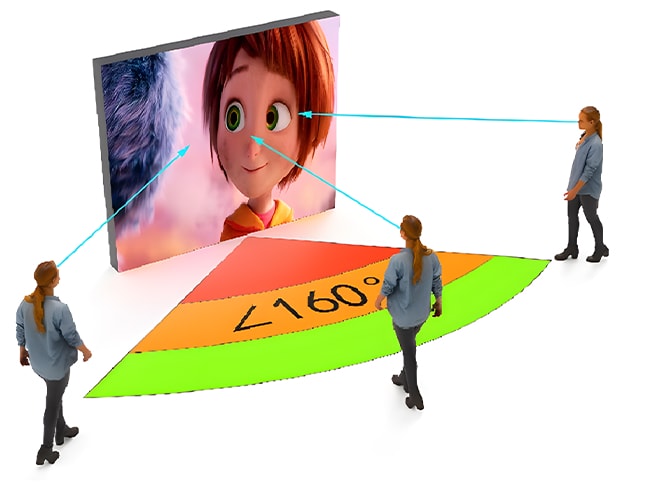

– Wide viewing angle
Perfect presentation of image/video from any angle
| Pixel pitch | mm | 0.78125 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle – Horizontal | deg. | 170(+85/-85) |
| Viewing angle – Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 7 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 48 |
| Cabinet material | Die-Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Mini 4 in 1 |
| Pixel matrix per cabinet | dots | 768X512 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 192X216 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |
