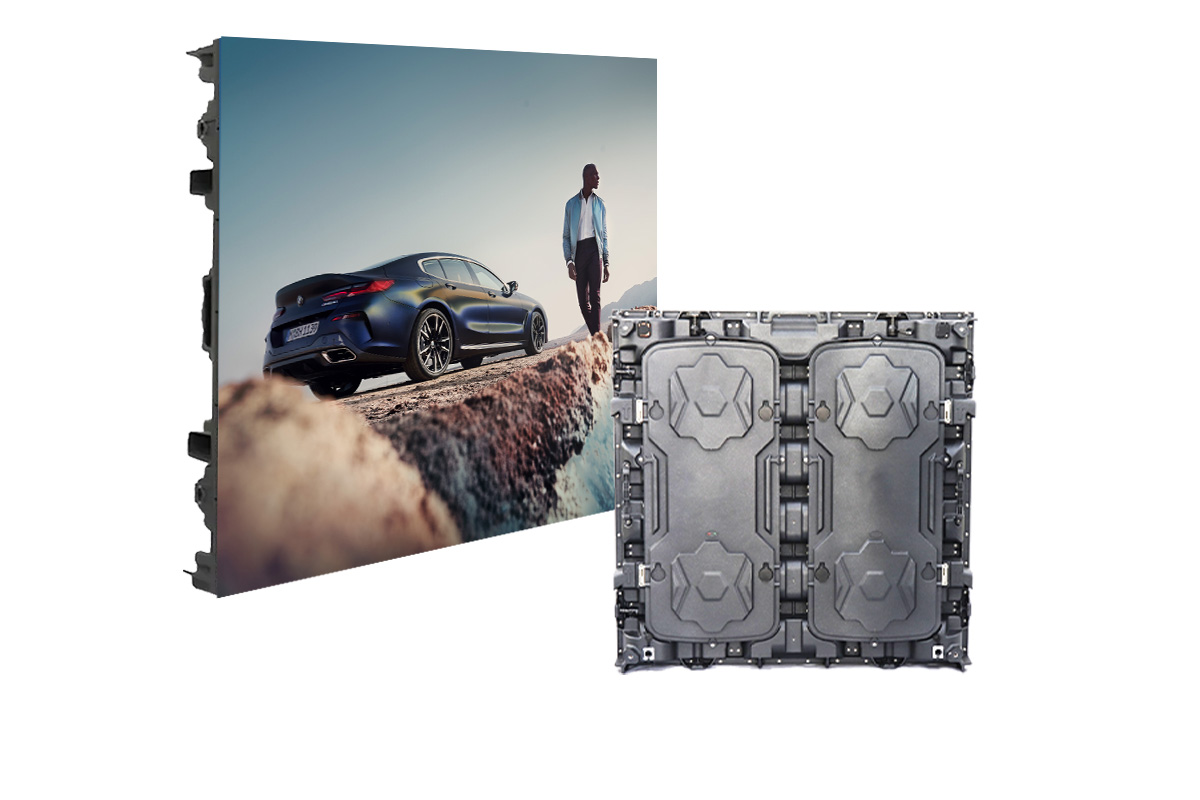

RM960-Series
Standard Units Rear Service LED Screen
Standard Size: 320x160mm/960*960mm
High Precision Cabinet – Excellent Flatness
Display Can Operate at -20°C to 60°C
With 3 Years Warranty and 5% Spare Parts
● The cabinet is made of magnesium alloy, featuring positioning slots, quick locks, cable holes, handles, and expandable screw holes, it boasts outstanding durability and ruggedness, ensuring reliable performance;

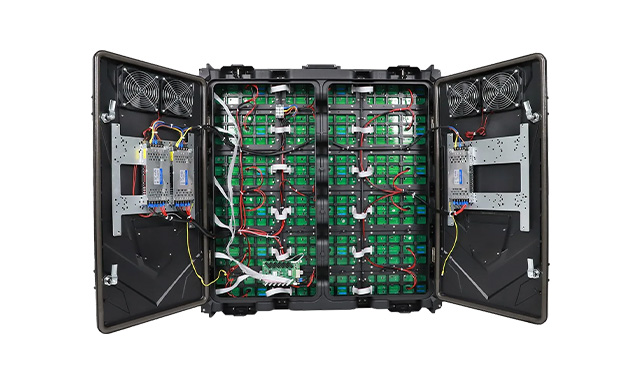

● The rear cover of the cabinet can be quickly opened for easy removal and maintenance of modules, power supplies, or control cards from the rear.
● The 960mmx960mm standard-size cabinet is versatile, compatible with various led display modules, panels replacement doesn’t require structural changes, ensuring seamless transitions;
● A complete led panel weighs only 25KG, half the weight of a typical outdoor iron cabinet, making it easy for transportation, installation, assembly, and disassembly.
● As the same screw holes, compatible with various standard-sized 320×160mm led display modules, such as outdoor P2.5, P3.076, P4, P5, P6.67, P8, P10, their standardized size allows for seamless replacement and efficient maintenance;
● Different models with varying pixel pitches are suitable for different indoor and outdoor applications, providing vibrant visual effects and reliable performance, meeting advertising, event, and digital signage needs.
● Outdoor: 5500-10000 nits;
● Automatically adjusts led display brightness based on daylight, ensuring optimal visibility in varying lighting conditions.
● Featuring 1920Hz high refresh rate IC;
● Various specifications with suitable pixel pitch;
● Top choice for high-end outdoor led displays.
● We offer a range of pixel pitches from P2.5 to P10mm to suit your outdoor location;
● Different resolutions cater to various viewing distances/visual experiences.
● Reliable SMD packaging and advanced calibration technology ensure our led displays achieve brightness levels of over 5500cd/m2 while maintaining clear, flicker-free, and distortion-free images;
● Various configurations are available: LED (Kinglight, Nationstar), IC (MBI5124, ICN2153, ICN2037), power supply (CZCL, Meanwell), control card (Colorlight, Novastar).
● Unique locks allow precise adjustment from six directions, ensuring precise positioning of each cabinet for an ultra-smooth alignment;
● Pre-drilled holes on the cabinet’s side simplify cable management and maintenance by connecting power and signal lines.
● The high-speed dual-fan cooling design ensures efficient heat dissipation, maintaining optimal performance and extending the device’s lifespan;
● With high-standard sealed protection, achieving an IP65 high protection rating, it ensures the led display cabinet is dustproof, waterproof, and corrosion-resistant, enabling normal operation even in harsh weather conditions.
● We offer a 3-year free warranty and 5% spare parts;
● Our products comply with CE and RoHS certification requirements;
● All panels come with unlimited technical support, ensuring confidence and peace of mind in your investment.
Image Contrast
● Enhancing contrast ratio comprehensively, effortlessly creating FHD, 2K, 4K, 8K, and 16K video walls, presenting the most authentic details and brightness levels in any scene;
● Whether it’s professional presentations or entertainment, color enhancement technology improves color accuracy and vibrancy, ensuring more vivid and realistic visual effects; point-to-point calibration technology provides pure images with outstanding gradient effects.
140° Ultra-Wide Viewing Angle
● Our display module feature a 140° ultra-wide viewing angle, providing consistent and clear visuals from almost any direction;
● Even when viewed from the side, this technology ensures images stay sharp and colors true;
● Perfect for large audiences and varied seating arrangements, it enhances the viewing experience by delivering high-quality visuals to everyone in the room.
| Pixel Pitch (mm) | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 (2S) |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 160,000 | 105,625 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixel) | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/16 | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Brightness (CD/㎡) | ≥5,000 | ≥5,000 | ≥5,500 | ≥6,000 | ≥6,500 | ≥6,500 | ≥7,500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Operation Power | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Max. Power Consumption (W/㎡) | 690 | 786 | 909 | 836 | 892 | 600 | 850 |
| Avg. Power Consumption (W/㎡) | 230 | 262 | 303 | 280 | 298 | 200 | 285 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
