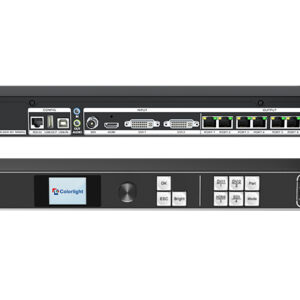

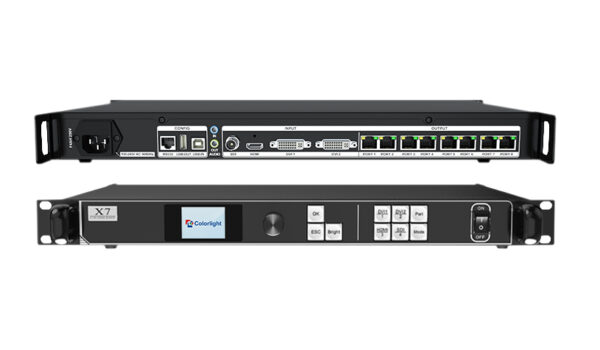

Colorlight X7 LED Display Screen Controller

Description

Colorlight X7 LED Display Screen Controller Overview:

Colorlight X7 LED Display Screen Controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI), and seamless switching between signals can be achieved. It supports broadcast quality scaling and multi-pictures display.
Colorlight X7 LED Display Screen Controller Features:

•Supports various digital signal ports, including 1×SDI, 1×HDMI, 2×DVI

•Supports input resolution up to 1920×1200@60Hz

•Loading capacity: 5.2 million pixels, Maximum width: 8192 pixels, Maximum height: 4096 pixels

•Supports arbitrary switching of video sources

•Supports three-picture display, the location and size can be adjusted freely

•Supports 16 kinds of preset modes, the saved preset parameters can be loaded at any time according to needs

•Supports HDCP1.4

•Dual USB2.0 for high speed configuration and easy cascading among controllers

•Supports adjustment of brightness, chromaticity, contrast ratio, tone, and saturation

•Supports improved gray-scale performance at low brightness

•Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight
Colorlight X7 LED Display Screen Controller Parameter:

Specification Download:
Colorlight X7 LED Display Screen Controller Specification
