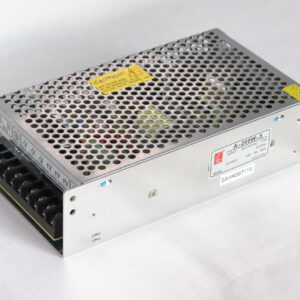

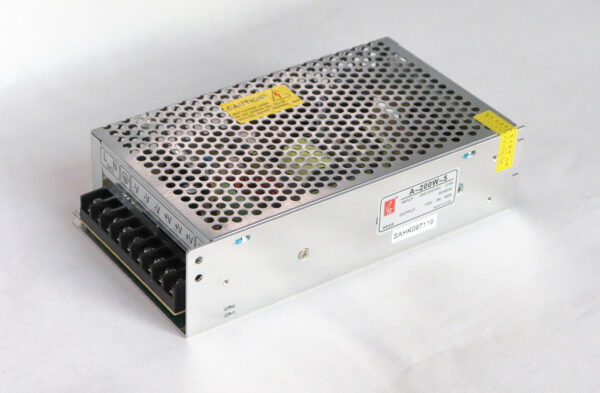

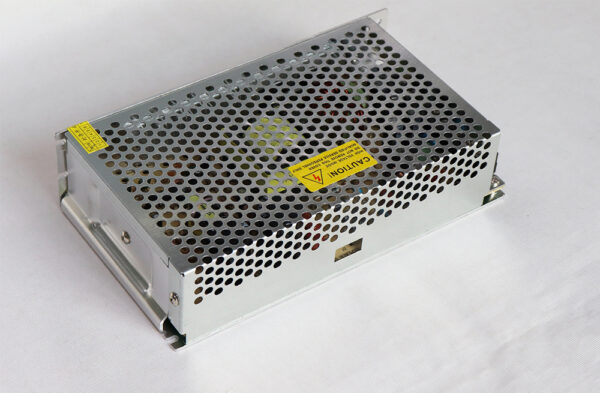

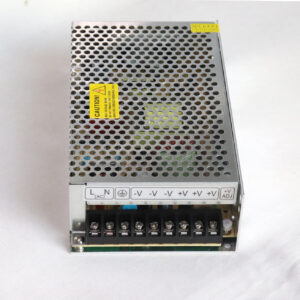

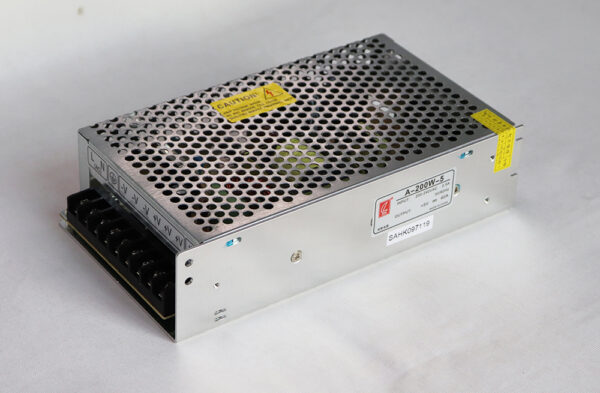

CZCL A-200W-5 Switching Power Source
$20.80
1.Protection: Short circuit/Overload
2.100% aging test
3.High-efficiency,high reliability
4. 2 years warranty
- Description
- Additional information
Description
Description
CZCL A-200W-5 Switching Power Source For LED Wall Screen Product Features:
Low output ripple&noise
Built-in EMI filter
High reliability
Approvals:CE CCC
Protections：Over load/Short circuit
Case:808 Size:199×110×50mm
1 years warranty
Input frequency———————————47-63Hz
AC input voltage range————————–176-264VAC
DC adjustment range—————————–±10% rated output voltage
AC inrush current——————————–Cold start，60A/230VAC
Output over load protection——-110%-150% shut off, AC recycle to re-start
Line regulation（full load）————————≤0.5%
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Rise，hold up time——————–50mS，20mS at full load（typical）
Storage temperature—– -20℃~+85℃，20%~95%RH(non condensing)
Working temperature—– -10~+40℃@100%，+60℃@60% load
EMC standards——- Design refer to GB9254，EN55022 class A
Safety standards——Design refer to GB4943，UL60950-1,EN60950-1
Cooling method———————Free air cooling convection
Additional information
Additional information
| Weight | 0.65 kg |
|---|
