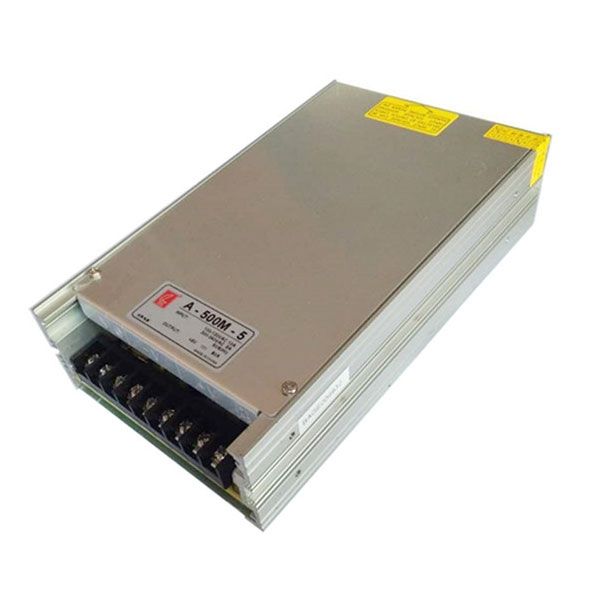

CZCL A-500M-5 5V 80A 500W Switching Power Supply in stock

Description

CZCL A-500M-5 5V 80A 500W Switching LED Module Power Supply in stock

Low cost-high reliability
CASE:812; Size:205×114×50mm
Protections Over load/Short circuit
Low output ripple&noise
Built-in EMI filter
Forced air cooling by Built-in DC fan
1 year warranty

Input frequency——————–47-63Hz
AC input voltage range—————176~264VAC/47~63HZ
AC inrush current———————Cold start 40A/230VAC
Line regulation（full load）————-≤0.5%
DC adjustment range——————±10% rated output voltage
Rise hold up time——————-50mS 20mS at full load（typical）
Output over load protection———-110%-150% shut off, AC recycle to re-start
Withstand voltage———————I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min
Storage temperature——————– -20C~+85C 20%~95%RH(non condensing)
Working temperature——————10~+40C@ 100% +60C@ 60% load
EMC standards—————— —–Design refer to GB9254 EN55022 class A
Safety standards———————–Design refer to GB4943 UL60950-1,EN60950-1
Cooling method———————– Forced air cooling by Built-in DC fan
