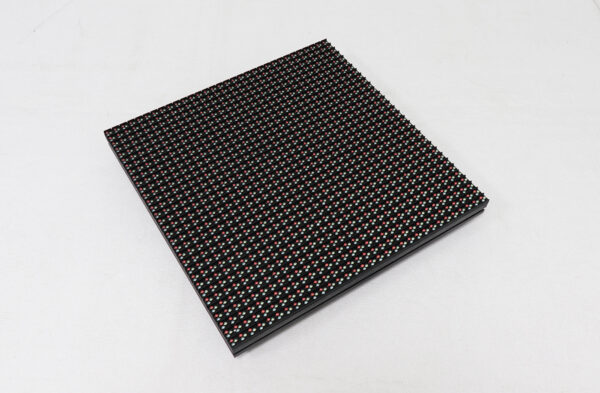

Front Maintenance P10 LED Module 320×320 P10 Dual Maintenance LED Module Outdoor DIP 1R1G1B 320x320mm

0 out of 5

Original price was: $77.60.Current price is: $50.00.

Model:P10-OF4L-1R1G1B32x32 Brightness:≥8000CD/㎡ Power consumption:60W Viewing angle:H:110°,V:50° Product description: P10 DIP 1R1G1B, high brightness, high cost performance front service LED sign module

Description

 Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Features of P10 1R1G1B 320×320 Outdoor Dual Maintenance LED Module:

1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 10mm pixel pitch is suitable for small banner screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.

 PCB Versions of P10 1R1G1B 320×320 Outdoor Dual Maintenance LED Module:

P10U4L-RGB32X32-EMC-Y1401-SWH   P10U4L-RGB32X32-Y1212-SWH
P10QU4L-RGB32X32-J1210-SWH   P10QU4L-RGB32X32-Y1212-SWH
P10U4L-RGB32X32-J1210-SWH P10DU4L-RGB32X32-J1210-SWH



 Parameters of P10 1R1G1B 320×320 Outdoor Dual Maintenance LED Module:

Item Specification
LED type DIP346
Pixel pitch 10mm
Pixel configuration 1R1G1B
Module Size 320x320mm
Module resolution 32x32pixels
Density 10,000 pixels/ ㎡
Driving Mode 1/4 duty
Brightness ≥8000CD/ ㎡
Viewing angle H:120°, V:120°
Best viewing distance 10m—100m
Working voltage 5V
Power consumption 60W
Module weight 2.5 KG
>Protection grade Front: IP65
Working Temperature -20 ~60℃

Additional information

Weight 2.5 kg
