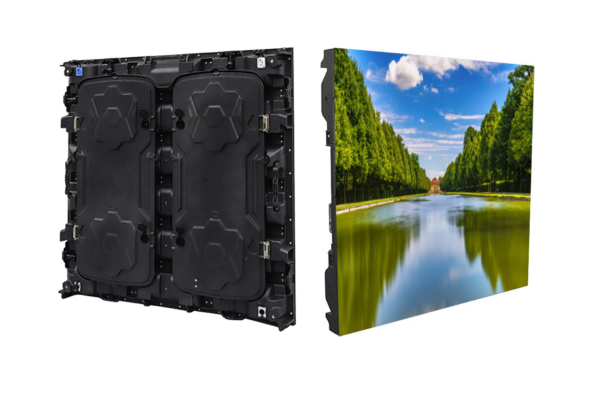

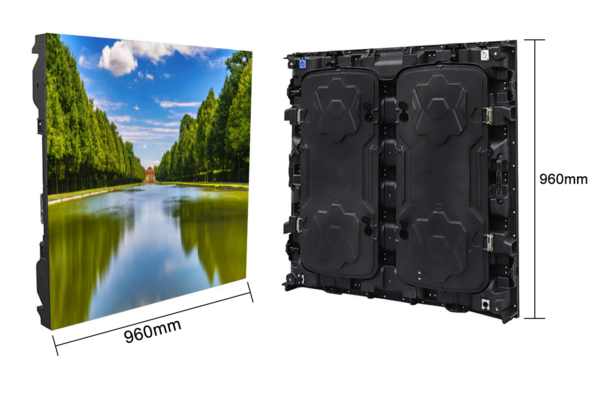

High Brightness P10 Outdoor DIP LED Display Screen 960x960mm Die-cast Fixed installation LED Panel For Sale
Original price was: $455.00.$400.00Current price is: $400.00.
Model: P10-OC4S-DIP346-32×16-L960xH960 Brightness:≥7500CD/㎡ Refresh frequency:≥1920Hz Viewing angle:140° Product description: P10 DIP346 outdoor commercial LED display board, high brightness, high refresh frequency, low attenuation, high reliability, good consistency, non-mosaic phenomenon.
- Description
- Additional information
Description
Description
High Brightness P10 Outdoor DIP LED Display Screen 960x960mm Die-cast Fixed installation LED Panel For Sale Features:

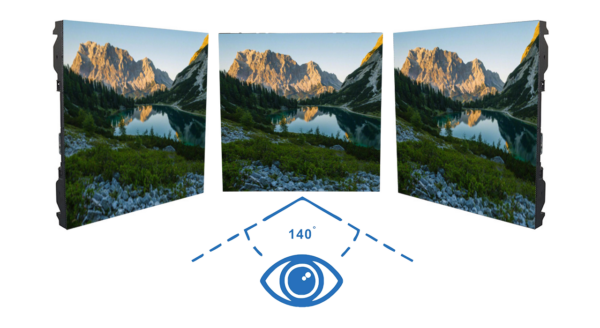

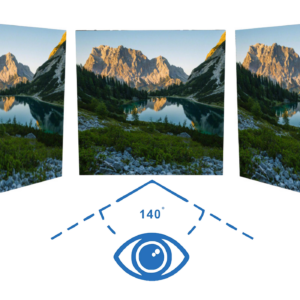

1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 140 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) High Level waterproof level which is suit for outdoor fixed installation.
5)1920HZ refresh rate, 14bit color depth,10,000 pixel/sqm.

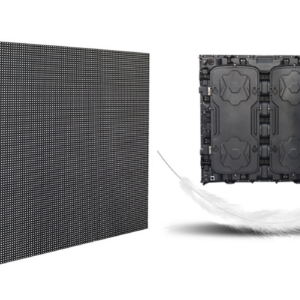

6) Easy to move and install .
P10 Outdoor DIP346 960x960mm Die-cast Fixed installation LED Panel For Sale Applications:
Exterior advertising LED display
Exterior rental LED display
P10 Outdoor DIP346 960x960mm Die-cast Fixed installation LED Panel For Sale Parameter:
| Module Parameter | |
| Pixel Pitch | 10mm |
| Pixel Configuration | DIP346 |
| Density | 10,000 pixels/㎡ |
| Module Resolution | 32pixel(L) * 16pixel(H) |
| Module Dimension | 320mm(L) * 160mm(H) * 30mm(D) |
| Driving Mode | Constant current, 1/4 duty |
| Module Mask | Pure black mask—high contrast screen |
| Color Temperature | 5000—9300 adjustable |
| LED Cabinet | |

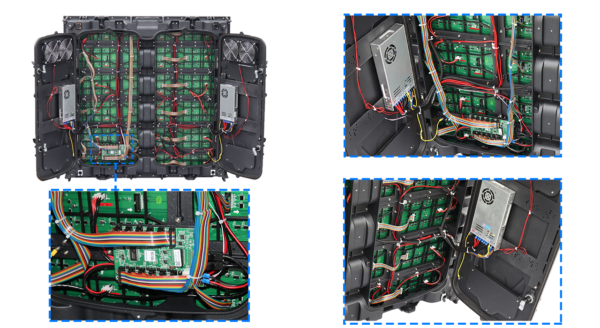

| Module Quantity in a Cabinet | 3(L) * 6(H) |

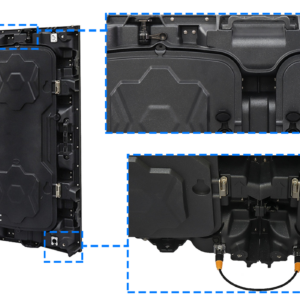

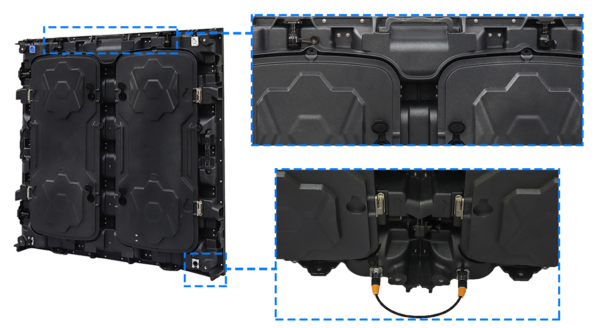

| Cabinet Dimension | 960（L）* 960（H）* 144(D)mm |
| Cabinet Resolution | 96(L) * 96(H) |
| Cabinet Material | Die-Cast magnesium alloy |
| Cabinet Weight | ≈30KG |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥7,500 cd/㎡ |
| Viewing Angle | 110°(Horizontal); 50°(Vertical) |
| Best Viewing Distance | ≥10m |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion Colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 520W/㎡ |
| Avg. Power Consumption | 175W/㎡ |
| Control System | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥1,920Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); |
| 20KM(optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |

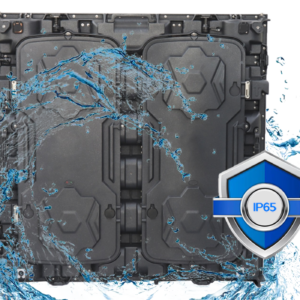

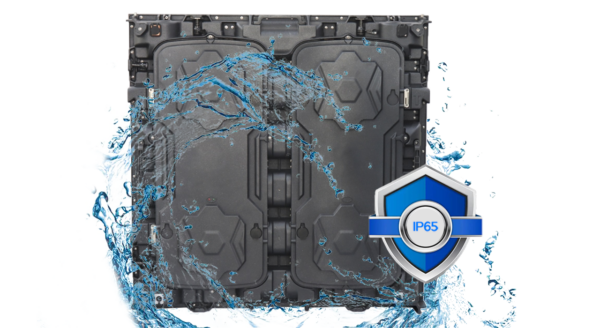

| Protection Grade | IP65(front), IP54(rear) |
| Out-of-Control Pixel Rate | ≤0.01% |
Additional information
Additional information
| Weight | 40 kg |
|---|
