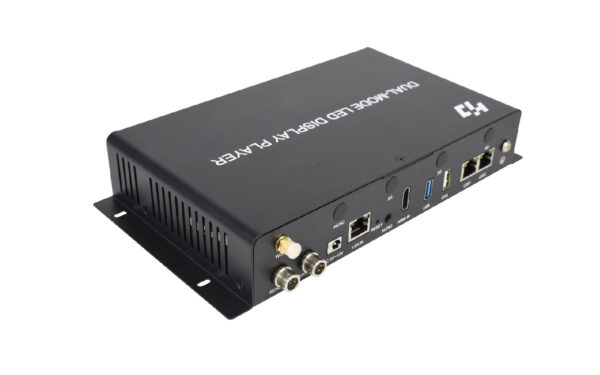

HUIDU HD-A4L Control Card For LED Screen Dual-model Controller Box

Huidu HD-R500 Asynchronous Full Color Cascading Receiver Card
Huidu HD-A6L Asynchronous & Synchronous LED Screen Sending Box
0 out of 5

Original price was: $131.00.Current price is: $99.00.

HD-A4L is an LED display multimedia player that supports playing videos, pictures, GIF animations, texts, WPS documents, tables, clocks, timing, and other programs. It integrates functions such as asynchronous playback, synchronous playback, supporting multi-terminal control and release programs.
R50X is receiving card for grayscale technology, which realizes the scanning display of LED screen.

SKU: HUIDU-HD-A4L Category:
Add to wishlist

Description

HUIDU HD-A4L Control Card For LED Screen Dual-model Controller Box Features：

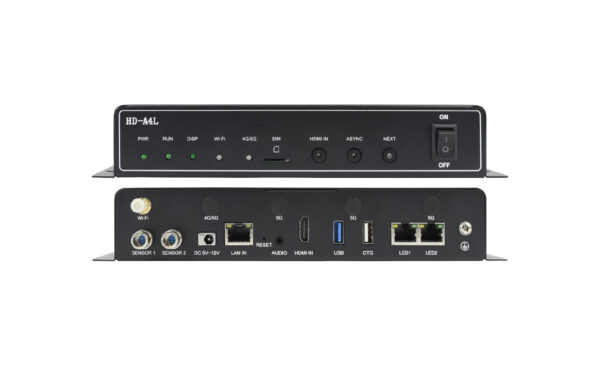

Input:

  1. Support 1 Gigabit communication network port for debugging parameters, faster program sending speed;
  2. Support 1 HDMI IN input interface, support automatic zooming of synchronous pictures, and support synchronous and asynchronous picture-in-picture functions;
  3. Support 1 channel USB2.0 (custom OTG/USB mode), 1 channel USB3.0 communication interface, which can be used for inserting programs and expanding capacity;
  4. Supports 2 channels sensor input interface, externally connected to various environmental monitoring sensors.



Output:

  1. Standard 2 Gigabit output network ports, directly cascaded HD-R series receiving card control display;

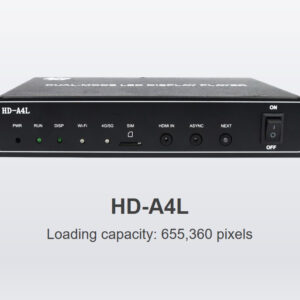

  2. The maximum control range is 655,360 pixels, the maximum horizontal (discounted) support is 16384 pixels, and the maximum vertical support is 4096 pixels;
  3. 1 channel TRS 3.5mm standard two-channel audio output.



Functions:

  1. Standard 2.4GHz Wi-Fi, support mobile phone APP wireless control (support STA mode, in this mode, the device can connect to the nearby Wi-Fi network);
  2. Support multi-channel video window playback (support up to 2-channel 4K or 6-channel 1080P or 10-channel 720P or 20-channel 360P);
  3. Support synchronous and asynchronous switching playback;
  4. Support 4G/5G (optional) access to XiaoHui Cloud platform to realize Internet remote cluster management;
  5. Support mobile phone, tablet and computer wireless projection.



2. Control Mode HUIDU HD-A4L Control Card Leeman LED Display Dual-model Controller Box：

1. Single-node control, support Wi-Fi, network port direct connection, USB interface for communication.


2. Cluster control, support Internet remote control.


3. Synchronous control, through HDMI signal input, synchronous playback.

Additional information

Weight 3 kg
