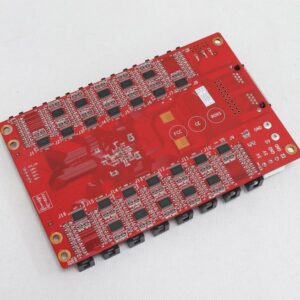

HUIDU HD-R516 Video LED Screen Full Color Receiving Card - Image 1

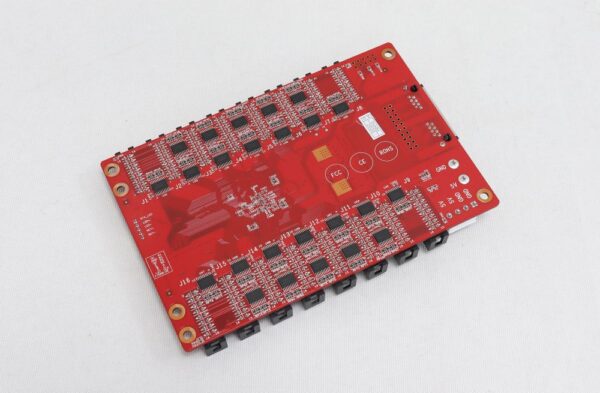

HUIDU HD-R516 Video LED Screen Full Color Receiving Card - Image 2

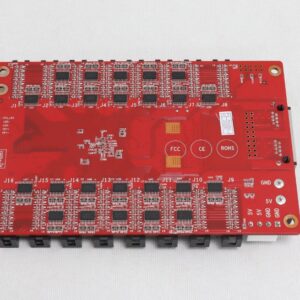

HUIDU HD-R516 Video LED Screen Full Color Receiving Card - Image 3

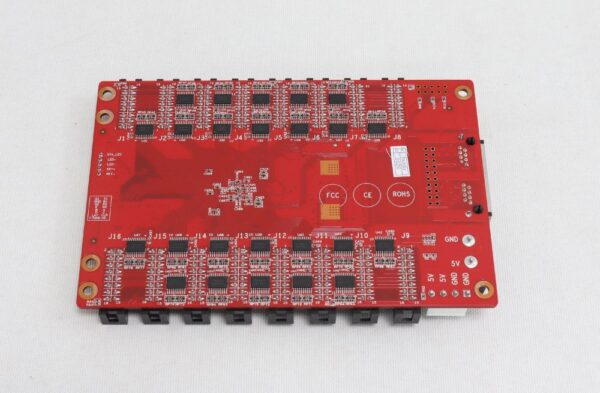

HUIDU HD-R516 Video LED Screen Full Color Receiving Card - Image 4

HUIDU HD-R516 Video LED Screen Full Color Receiving Card

HUIDU HD-R512 LED Screen Full Color Receiving Card
Huidu T901 LED Screen Video Sending Card
0 out of 5

$16.00

1 ： Gigabit Ethernet port, used to connect the sending card or receiving card, the same two network ports are interchangeable,
2 ： Power interface, can be accessed with 4.5V ~ 5.5V DC voltage；
3 ： Work indicator, D1 flashes to indicate that the control card is running normally; D2 flashes quickly to indicate that Gigabit has been recognized and data is being received.

SKU: HUIDU-HD-R516 Category:
Add to wishlist

Description

HUIDU HD-R516 Video LED Screen Full Color Receiving Card Features:



1 ： Gigabit Ethernet port, used to connect the sending card or receiving card, the same two network ports are interchangeable,
2 ： Power interface, can be accessed with 4.5V ~ 5.5V DC voltage；
3 ： Work indicator, D1 flashes to indicate that the control card is running normally; D2 flashes quickly to indicate that Gigabit has been recognized and data is being received.
4 ： Test button,used to test display brightness uniformity and display module flatness.
5 ： External indicator light, run light and data light,
6 ： HUB75Eport, connect to the modules.



HUIDU HD-R516 Video LED Screen Full Color Receiving Card Parameter:

Fit for sender A4、 A5、 A6、 A601、 A602、 A603 dual mode player；
A3、 A30、 A30+、 C10、 C10C、 C30、 C15、 C15C、 C35、 C35C
Asynchronous controller；
T901、 T901B、 T901S synchronous controller； VP210、
VP410 video processor.
Module type Compatible with all common IC module, supported most PWM
IC module.
Scan mode Supports any scanning method from static to 1/64 scan
Communicatio
n method		 Gigabit Ethernet
Control range Recommend： 256*512 pixels
Outdoor module width ≤256, Indoor module width ≤128
Multi-card
connection		 Receiving card can be put in any sequence.
Gray scale 256~65536
Smart setting A few simple steps to complete the smart settings, through the
screen layout can be set to go with any alignment of the screen
unit board
Test functions Receiving card integrated screen test function,Test display
brightness uniformity and display module flatness.
Communicatio
n distance		 Super Cat5,Cat6 network cable within 146 meters
Port 5V DC Power*2,1Gbps Ethernet port*2, HUB75E*16
Input voltage 4V-6V
Working
temperature		 -40℃~85℃

Additional information

Weight 0.65 kg
