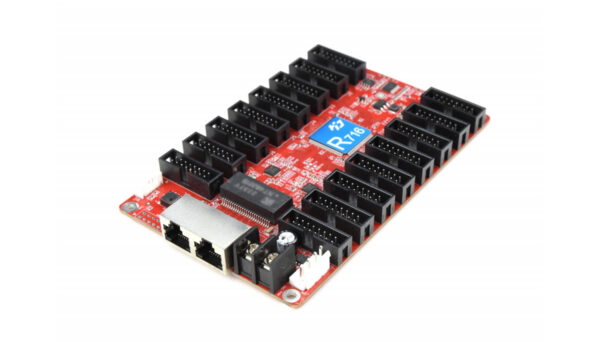

Huidu HD-R716 R716 Synchronous control system and asynchronous control system LED receiving card
$12.50
R716 is an LED display receiving card that supports synchronous control system and asynchronous control system at the same time. It does not need an adapter board. It has 16 standard HUB75E interfaces on board, which has good stability. It supports 32 sets of RGB parallel data and has a large load capacity. The maximum controllable 320,000 pixels.
- Description
- Additional information
Description
Description
Huidu HD-R716 R716 Synchronous control system and asynchronous control system
LED receiving card Parameters Table：
| function item | parameter | ||||||
| Support sending type | Support synchronous and asynchronous dual-mode play box, asynchronous sending card, synchronous sending card and two-in-one A video processor. |
||||||
| Support mods | Support all conventional chip modules; support mainstream PWM chip modules | ||||||
| scanning method | Support any scan mode from static to 1/128 scan, support snapshot and empty point settings | ||||||
| ommunication mode | Gigabit Ethernet port | ||||||
| load range | Maximum load: 320,000 points Conventional chip 160*1024, 256*640 PWM chip 320*1024, 256*1280, 512*640 Note: The actual load is related to the number of interfaces/module resolution |
||||||
| Multi-card connection | Receiving cards can be sorted arbitrarily, nanosecond-level synchronization | ||||||
| grayscale | Support 256~65536 levels | ||||||
| smart settings | Smart settings can be completed in a few simple steps, and any routing can be matched through the screen routing settings Display unit board in line mode |
||||||
| test function | The receiving card integrates the screen test function to test the brightness uniformity of the display screen and the display screen Module flatness | ||||||
| communication distance | Within 80 meters of Category 5e and Category 6 network cables | ||||||
| interface | 2 5V power ports, 2 Gigabit Ethernet ports, 16 groups of HUB75E ports | ||||||
| Input voltage | 4.0V-5.5V | ||||||
| Working power | 5 watts |
Specification Download:
Additional information
Additional information
| Weight | 0.65 kg |
|---|
