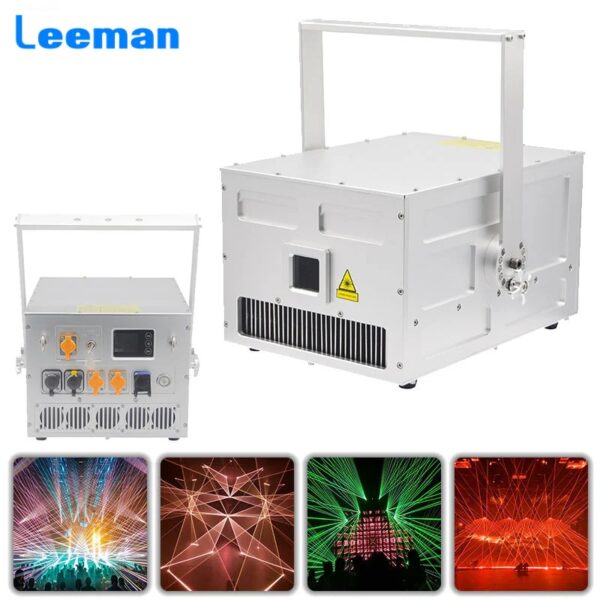

IP65 Waterproof 10W 15W RGB Laser Light 40Kpps Professional 3D Animation Laser Scanner DMX DJ Disco Party Stage Effect Light

Description

IP65 Waterproof 10W 15W RGB Laser Light 40Kpps Professional 3D Animation Laser Scanner DMX DJ Disco Party Stage Effect Light

1. Power supply: input voltage 100~250V/AC, 50/60HZ, maximum power 250W
2. Laser parameters:
WP15RGB: red laser power 4.4W, laser wavelength 638nm
Green laser power 4.8W, laser wavelength 520nm
Blue laser power 6.5W, laser wavelength 450nm
Exit spot size <4.5*6.0(H)mm, divergence angle: <1.1mrad
WP10RGB: red laser power 3.3W, laser wavelength 638nm
Green laser power 3.6W, laser wavelength 520nm
Blue laser power 4.5W, laser wavelength 450nm
Exit spot size <4.0*6.0(H)mm, divergence angle: <1.1mrad
3. Laser life: >10000 hours
4. Laser safety level: Class 4
5. Protection level: IP65
6. Working environment: outdoor and indoor, -30°C–40°C
7. Scanning system: Dragon Tiger DT40
High-precision high-speed galvanometer, speed>40KPPS ILDA @8°, maximum scanning angle 60°, ±5V signal input;
X-axis lens: width 7*length 12mm, Y-axis lens: width 7*length 12mm.
8. Control mode:
ILDA mode (PC control), DMX-512 mode, self-propelled;
Optional FB4 control system of PANGOLIN company
9. Control interface:
RJ45-ILDA interface (cable is easy to make and wire, 300 meters test without any attenuation)
3PIN XLR socket interface
RJ45-LAN interface, switch LAN expansion interface. (FB4 model has, the LAN interface on the original FB4 is automatically blocked)
10. Machine size: 370(L)*165(W)*210(H)mm
11. Net weight: 13.5Kg/WP10RGB 14.5Kg/WP15RGB
