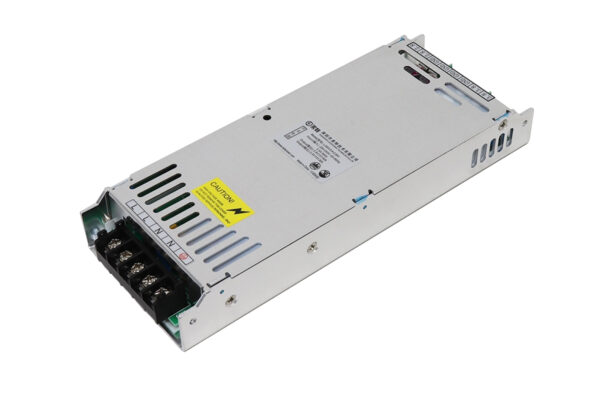

LaitePower L300V3.8-2.8A1 Power Supply
$43.00
LaitePower L300V3.8-2.8A1 Power Supply has the following features:● Input voltage: 200Vac to 264Vac ● Protection function: SCP; OCP; OVP ● Operation temperature range: -30℃ to +70℃(-40℃ can start up) ● High Efficiency, long life and high reliability ● PCB using conformal coating process
- Description
- Additional information
Description
Description
LaitePower L300V3.8-2.8A1 Power Supply has the following features:
● Input voltage: 200Vac to 264Vac
● Protection function: SCP; OCP; OVP
● Operation temperature range: -30℃ to +70℃(-40℃ can start up)
● High Efficiency, long life and high reliability
● PCB using conformal coating process
LaitePower L300 Power Supply Parameter:
| INPUT | |
| Input Voltage Range | 200Vac to 264Vac |
| Rated Input Voltage | 200Vac to 240Vac |
| Input Frequency Range | 47Hz to 63Hz |
| Rated Input Frequency | 50Hz to 60Hz |
| Input Current | Max. 3.5A at 200Vac input at Full Load |
| Inrush Current | 60A (TYP. peak) at 240Vac |
| Power Factor | ≧0.5 at 220Vac |
| Efficiency | 82% min@220Vac ,Full Load |
| OUTPUT | |
| Output Power | 236W |
| Output Channel | Rated Output Voltage | Voltage | Rated Current |
| CON2/3 | +3.8Vdc | ±5% | 200Vac to 240Vac； 0A-40A |
| CON8/9 | +2.8Vdc | ±5% | 200Vac to 240Vac； 0A-30A |
| Dimensions | 212mm x 81.5 mmx30mm±0.5mm |
Specification Download:
LaitePower V3.8-2.8A1 Power Supply Specification
Additional information
Additional information
| Weight | 0.65 kg |
|---|
