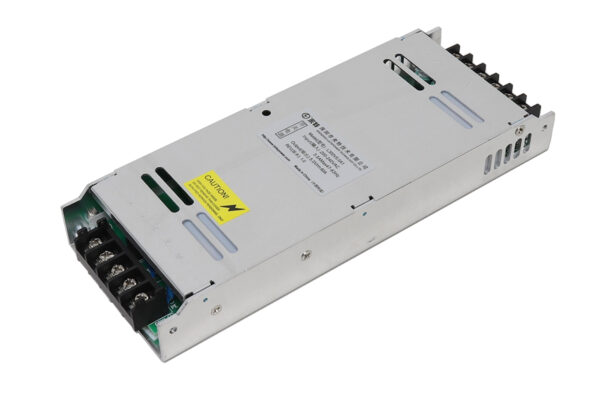

LaitePower L300V4.6A2 300W Power Supply For LED Video Screen
$17.80
LaitePower L300V4.6A2 300W Power Supply For LED Video Screen Features:Input voltage:200Vac to 264VacProtection function: ESP OCPOperation temperature range: -25℃ to +70℃High Efficiency, long life and high reliabilityPCB using conformal coating process
- Description
- Additional information
Description
Description
LaitePower L300V4.6A2 300W Power Supply For LED Video Screen Features:
Input voltage:200Vac to 264Vac
Protection function: ESP OCP
Operation temperature range: -25℃ to +70℃
High Efficiency, long life and high reliability
PCB using conformal coating process
LaitePower 300W Power Supply For LED Video Screen Parameter:
| Input Voltage Range | 200Vac to 264Vac |
| Rated Input Voltage | 200Vac to 240Vac |
| Input Frequency Range | 47Hz to 63Hz |
| Rated Input Frequency | 50Hz to 60Hz |
| Input Current | Max3.5A at AC230V input and full load |
| Inrush Current | ≤80A (TYP. peak) at 230Vac |
| Power Factor | ≥0.5 at 230Vac |
| Efficiency | Efficiency should at 100% load >86.0% at 230Vac |
Specification Download:
LaitePower V4.6A2 300W Power Supply For LED Video Screen Specification
Additional information
Additional information
| Weight | 0.65 kg |
|---|
