Linsn Hub94A LED Control Card
$13.80
Linsn Hub94A LED Control Card
- Description
- Additional information
Description
Description

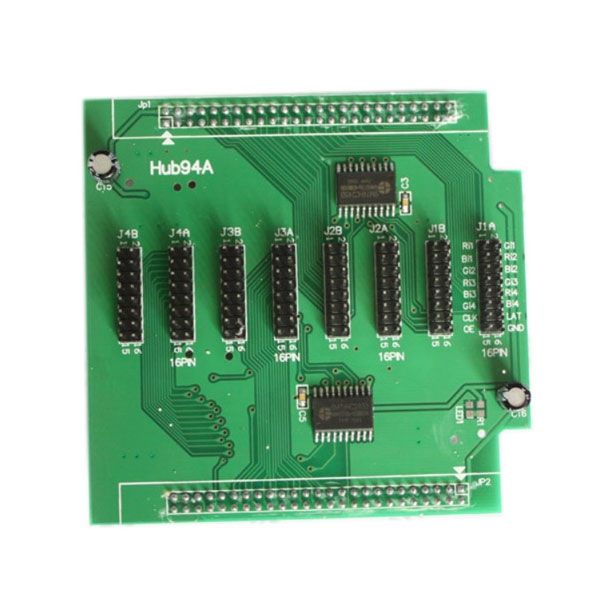

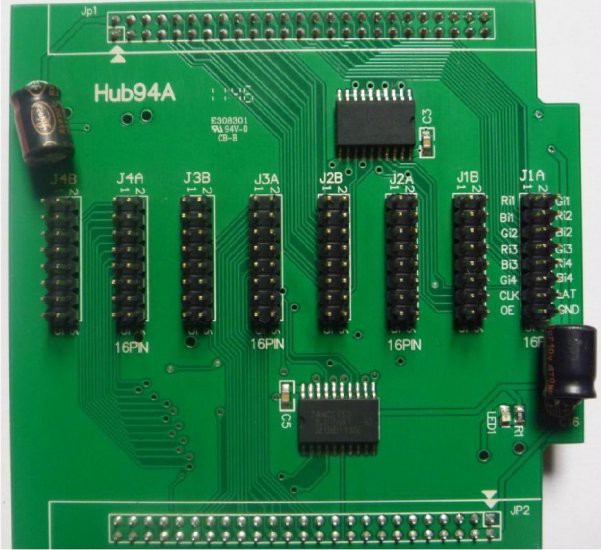

Linsn Hub94A LED Control Card
- Function:
Allocate the right signals of receiving card to LED module.
Specification:
- Socketed in RV801.
- HUB Model is chosen according to the pin-out of LED Module.
- To allocate the right signals to LED Module pins.
- Use flat cable (IDE).
- If the HUB pin-outs is not exactly the same as the LED module pin-ins,jumper wire can be applied.
| HUB94A | ||||
| N.O | Des. | N.O | Des. | |
| 1 | DR1 | 2 | DG1 | |
| 3 | DB1 | 4 | DR2 | |
| 5 | DG2 | 6 | DB2 | |
| 7 | DR3 | 8 | DG3 | |
| 9 | DB3 | 10 | DR4 | |
| 11 | DG4 | 12 | DB4 | |
| 13 | CLK | 14 | LAT | |
| 15 | OE | 16 | GND | |
