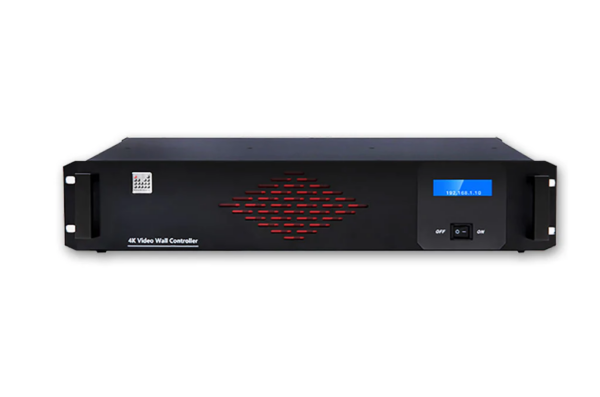

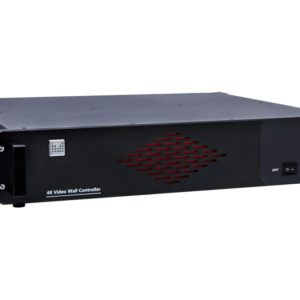

Magnimage brand MIG-DN9402 Series 4K Video Wall Controller with 12G SDI

Magnimage S series LED Sending Box S200 T4S T16S LED Display Controller
Magnimage LED Video Processor LED-W2000 Series 4K*2K LED-W2000-2DH LED Display Controller
0 out of 5

$5,180.00

MIG-DN9402 is one of Magnimages new 4K processor , which is specially designed for large resolution display system.
Adopt the highest level video processing chip,internal 24 bits system ,4K/60HZ 4:4:4 technology . interal system adopt
4K&2K matrix function, support multiple 4K input .

SKU: MIG-DN9402 Category:
Add to wishlist

Description

Magnimage MIG-DN9402 Series 4K Video Wall Controller with 12G SDI Product Overview

MIG-DN9402 is one of Magnimage’s new 4K processor , which is specially designed for large resolution display system.
Adopt the highest level video processing chip,internal 24 bits system ,4K/60HZ 4:4:4 technology . interal system adopt
4K&2K matrix function, support multiple 4K input .
Advanced cross-point image processing technology, make sure no delay and jag, output image more clear and smooth.

Abundant input ,which support max 9 4K channel input. Include 4K DP,DP,12GSDI.

4 channel 4K out(still have backup port),4Kx2K ,60HZ
Support 4K*2K/60hz 4:4:4 input
Support HDCP 1.4&2.2
1 HDMI out for monitoring
9 channel matrix input (4xHDMI 2.0,4xDP1.2,1x12G
SDI extender module)
Support background capture and save
2 background can be saved
Support EDID management,and input rename
Image crop and image zoom function
Support Genlock Sync

Support 20 preset ,saving and calling

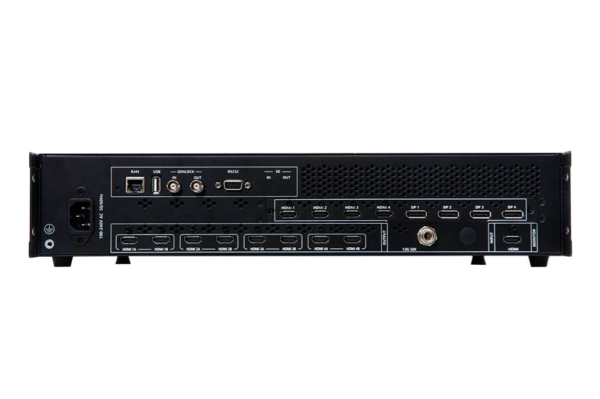

Processor Panel Introduction

Support 9 channel input, DP1.2×4, +HDMI2.0x4+12G SDI(extender option)
Output Interface: total HDMI2.0 x8 (inclue backup port x4)+ Monitoring HDMI x1

Lan port and RS232 controling

Support Genlock
Sync module

Support USB update

Function brief Introduction
Mosaic Mode 1:
4 channel 4K output mosaic,pixel to pixel display for Huge screen .

Mosaic Mode 2:
4 channel 4K out, any out mosaic and any out independent display

Function brief Introduction
Background capture,multi-layer display, seamless preset switching

Spport 2 backgroud, each output support 4 layer , re-sizeable and re-positionable. Max total support 16 layers,and 20
preset for switching

Additional information

Weight 2 kg
