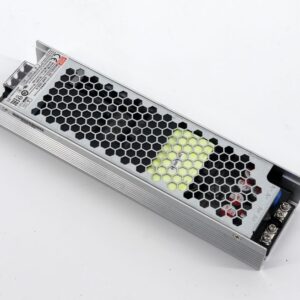

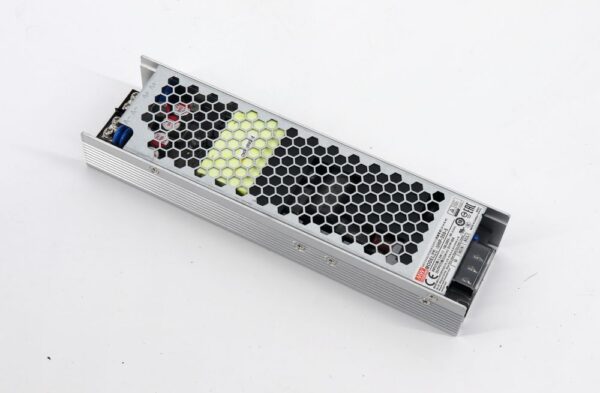

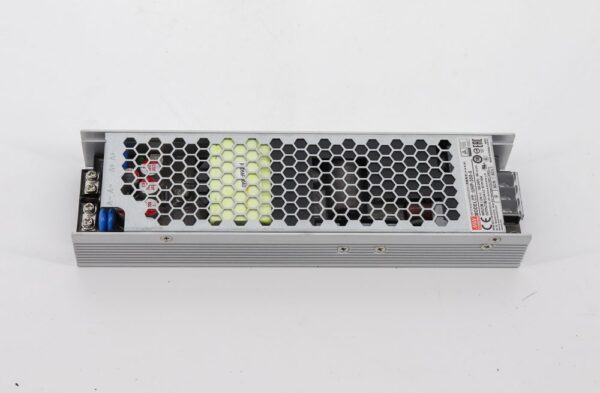

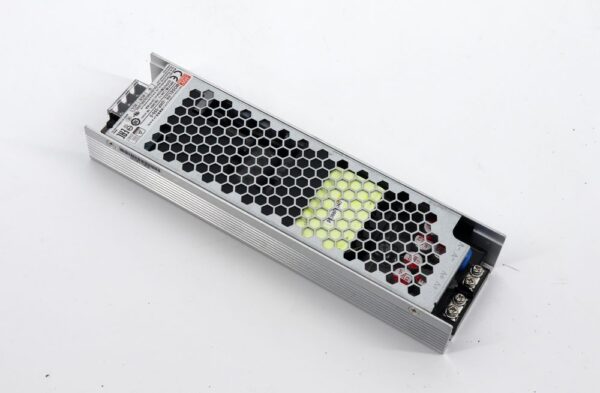

Meanwell UHP-350-5 Single-output Slim Type LED Power Supply

Meanwell HSN-300-5A(HSN-300-5B,HSN-300-4.2A, HSN-300-4.2B) LED Display Power Supply
Meanwell LRS-300E-5 LED Video Display Power Supply
0 out of 5

$48.00

Meanwell UHP-350-5 Single-output Slim Type LED Power Supply is a 350W single-output slim type power supply with 31mm of low profile design.

SKU: Meanwell-UHP-350-5 Category:
Add to wishlist

Description

Features of Meanwell UHP-350-5 Single-output Slim Type LED Module Power Supply:

Slim Low profile(31mm)
Fanless design,350W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
－30~+70′ working temperature
Protections:Short circuit/Overload/
Over voltage/Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
3 years warranty



Description of Meanwell UHP-350-5 LED Display Power Supply:

UHP-350-5 is a 350W single-output slim type power supply with 31mm of low profile design. Adopting the full range 90~264VAC input. In addition to the high efficiency up to 94%,that the whole series operatesfrom-30C~70C under air convection without fan.UHP-350 has the complete protection functions and 5G anti-vibration capability;lt is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL 62368-1 and GB4943.UHP-350 series serves as a high performance power supply solution for various industrial applications.

Additional information

Weight 0.65 kg
