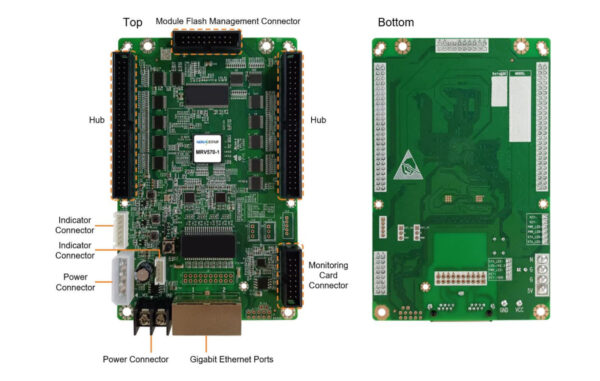

Novastar MRV570-1 receiving card

Novastar MRV328 Receiving Card with 8 HUB75 ports
Novastar A5S PLUS-N LED Receiving Card
0 out of 5

Original price was: $31.50.Current price is: $28.00.

A single MRV570-1 supports resolutions up to 512×256@60Hz. Supporting various functions such as pixel level brightness and chroma calibration, the MRV570-1 can significantly improve the display effect and user experience.

SKU: Novastar MRV570-1 Category:
Add to wishlist

Description

Novastar MRV570-1 receiving card Features:

  • Module Flash management to store calibration coefficients and module information
  • Pixel level brightness and chroma calibration
  • Support for setting of a stored image in the receiving card
  • Configuration parameter readback
  • Temperature monitoring
  • Ethernet cable communication status monitoring
  • Power supply voltage monitoring
  • Support for connection of a monitoring card



Novastar MRV570-1 receiving card Specifications:

Maximum Resolution 512×256@60Hz
Electrical Specifications Input voltage DC 3.8 V to 5.5 V
Rated current 0.5 A
Rated power consumption 2.5 W
Operating Environment Temperature –20°C to +70°C
Humidity 10% RH to 90% RH, non-condensing
Storage Environment Temperature –25°C to +125°C
Humidity 0% RH to 95% RH, non-condensing
Physical Specifications Dimensions 145.8 mm × 91.5 mm × 18.4 mm
Packing Information Packing specifications An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains
100 receiving cards
Packing box dimensions 625.0 mm × 180.0 mm × 470.0 mm

Additional information

Weight 0.65 kg
