Novastar CVT10-S CVT10-M Fiber Converter LED Screen
Original price was: $748.00.$700.00Current price is: $700.00.
Novastar CVT10-S CVT10-M LED Screen Fiber Converter
- Description
- Additional information
Description
Description
Novastar CVT10-S CVT10-M Fiber Converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The CVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.
The CVT10 is used for long-distance data transmission. Users can decide a connection method based on whether the sending card has optical ports.
Fiber Converter CVT10
- Models include the CVT10-S (single-mode) and the CVT10-M (multi-mode).
- 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
- 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
- Fiber in and Ethernet out: 8x Ethernet ports available (ports 1–8), ports 9–10 currently unavailable (to beavailable in the future upgrade)
- Ethernet in and fiber out: 10x Ethernet ports available
- 2 types of power connectors, including a 3-pin power socket and a PowerCON socket
- 1x type-B USB control port

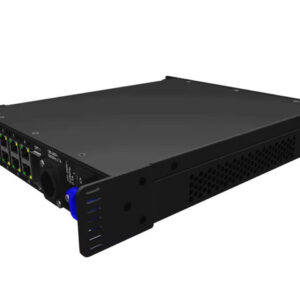

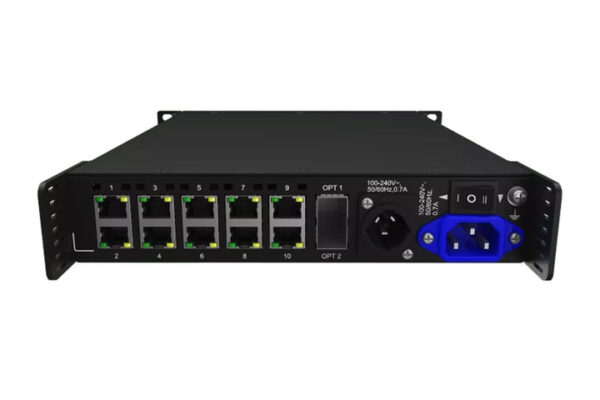

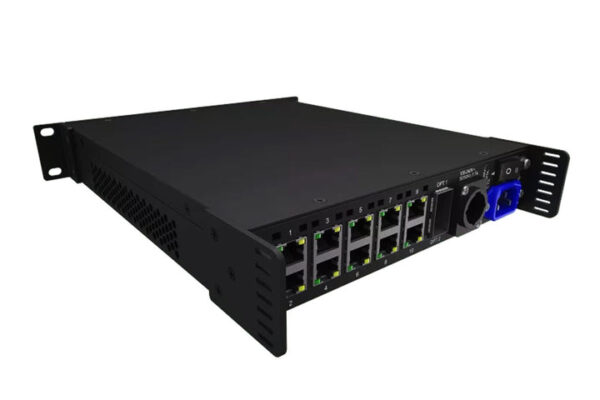

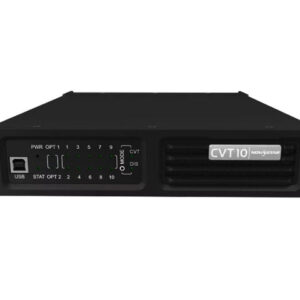

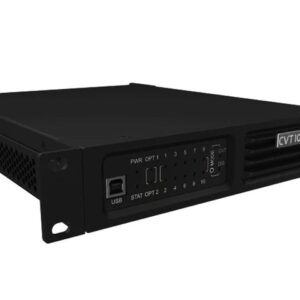

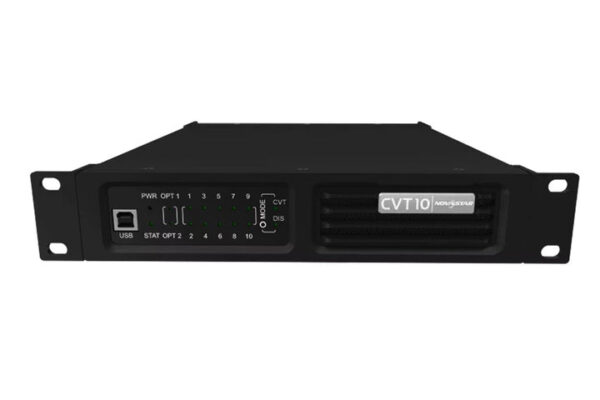

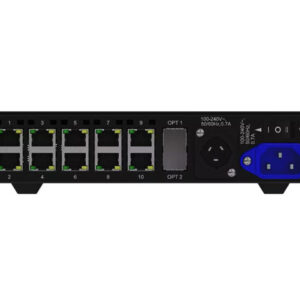

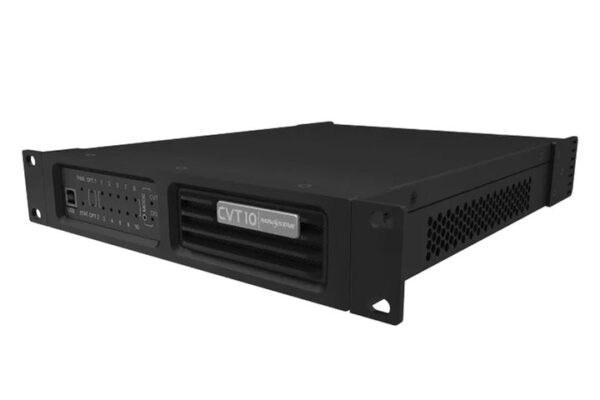

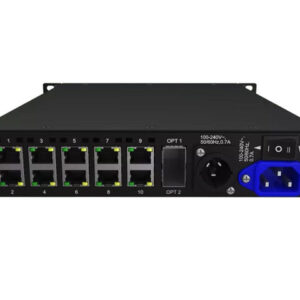

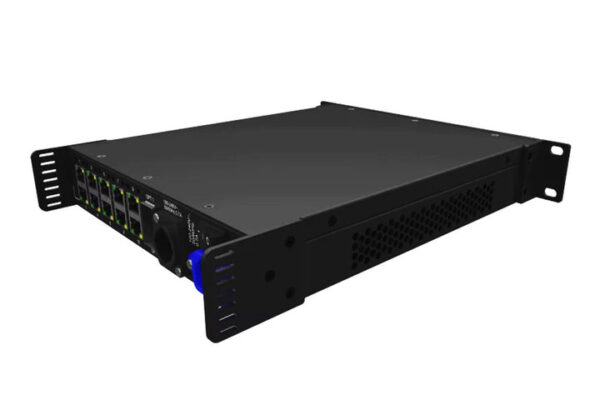

Fiber Converter Appearance
Novastar Fiber Converter CVT10 Parameters
| Electrical Specifications | Power supply | 100-240V~, 50/60Hz, 0.7A |
| Rated power consumption | 22 W | |
| Operating Environment | Temperature | –20ºC to +60ºC |
| Humidity | 10% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Humidity | 10% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 254.3 mm × 50.1 mm × 290.0 mm |
| Net weight | 2.1 kg
Note: It is the weight of a single product only. |
|
| Gross weight | 3.1 kg
Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications. |
|
| Packing Information | Packing box | 362.0 mm × 141.0 mm × 331.0 mm, kraft paper box |
| Outer box | 387.0 mm × 173.0 mm × 359.0 mm, kraft paper box | |
| Packing list | l 1x CVT10
l 1x Power cord, 1x USB cable, 1x Ethernet cable l 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts) l 1x Connecting piece l 12x M3*8 screws l 1x Assembling diagram l 1x Certificate of Approval |
|
| Certifications | RoHS, FCC, CE, IC | |
