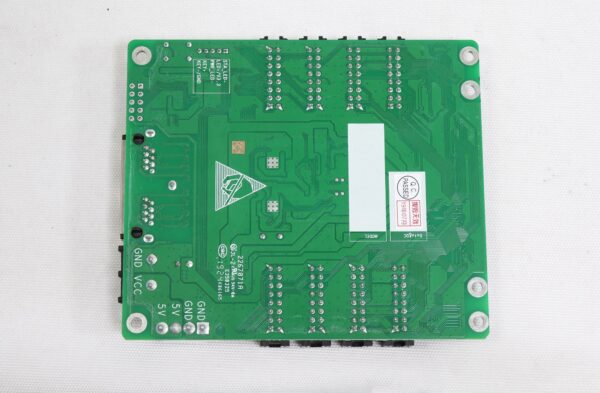

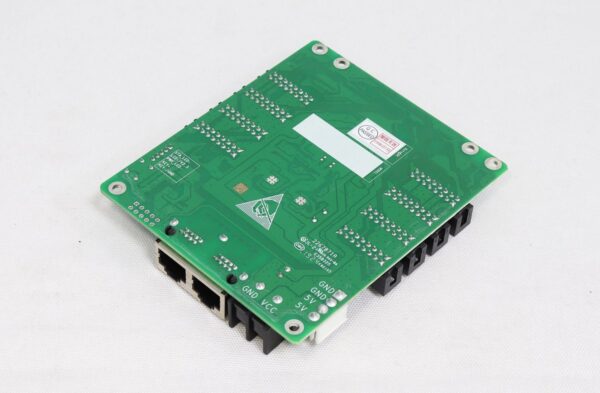

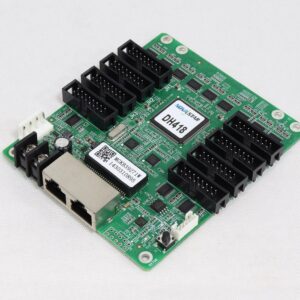

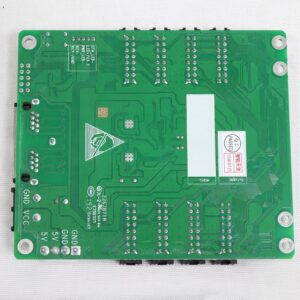

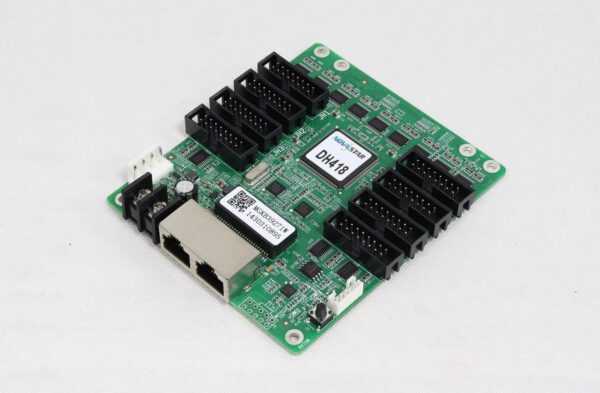

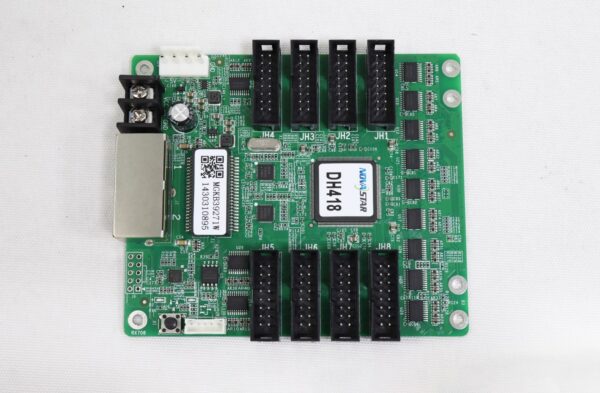

Novastar DH418 Receiver Card LED Video Screen

Description

Novastar DH418 Receiver Card LED Video Screen Universal Receiving Card is a cost-effective receiving card from Nova Technology. The single card has a maximum load of 256 × 256 pixels.
Supports up to 16 sets of RGB parallel data. With 8 standard HUB75 interfaces, it has high stability and high reliability and is suitable for a variety of environments.
The hardware design and software design of the DH418 fully considers the scenarios of user deployment, operation, and maintenance, making deployment easier, more stable, and more efficient.
Product Type : Universal Receiver Card
On-load pixel: 256×256
RGB data: 16 groups of RGB
Connect the monitoring card:
Light Board Flash:
Onboard: 8 standard HUB75 interfaces
Certification : RoHs

Novastar DH418 LED Screen Video Universal Receiving Card Features:

Support for lighting chromaticity correction
Support fast bright and dark line adjustment
Support for 3D functions
Support RGB independent Gamma adjustment
Support for Mapping function
Support receiving card pre-stored screen settings
Support temperature and voltage monitoring
Support box liquid crystal display
Support error monitoring
Support firmware program and configuration parameters readback
Support loop backup, configuration parameter double backup, dual program backup
