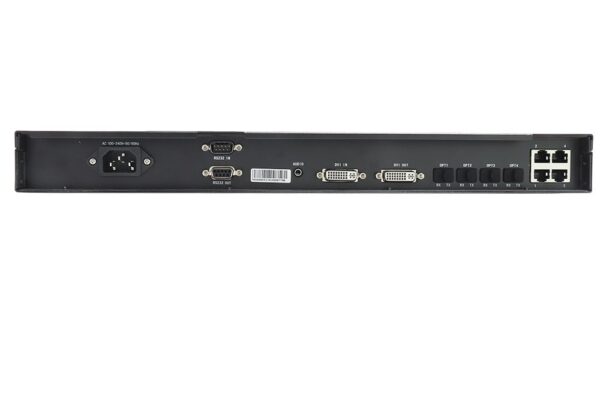

Novastar MCTRL500 LED Display Controller Box for advertising led screen

Description

Characteristics of MCTRL500 NOVASTAR LED Display Controller Box:

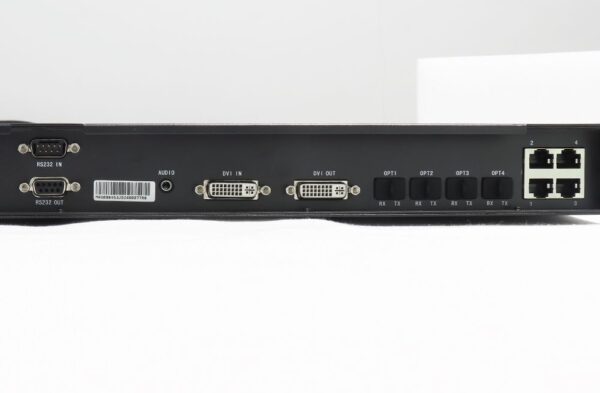

1)DVI interfaces for cascade (video input and output).

2) Audio input interface integrated.

3) Optional data output interfaces (4 RJ45 Ethernet ports or 4 optical fiber ports) to scan boards (receiver cards).

4) RS232 serial ports for cascade instruction communication.

5) Maximum load capacity: 1920×1200 or 2048×1152.

The Novastar MCTRL500 is an independent controller of NovaStar. The maximum loading capacity of a single controller is 1920×1200@60Hz. Multiple controllers can be cascaded via RS232 port for uniform control. The MCTRL500 can be mainly used for the rental and fixed fields, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Features:

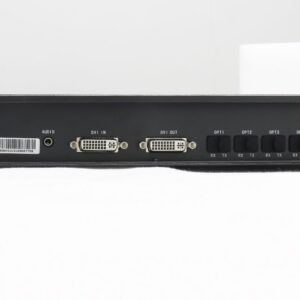

1 × DVI input
1 × audio input  1 × DVI output  4 × RJ45 Gigabit Ethernet outputs
4 × 1.25G optical outputs  RS232 control port to cascade devices for uniform control  Supports resolutions up to 1920×1200@60Hz and downward compatibility.
Supports the new generation of NovaStar calibration technology.
Supports input monitoring.  Multiple controllers can be cascaded.
Supports a variety of video formats, as described in Figure 2-1.
