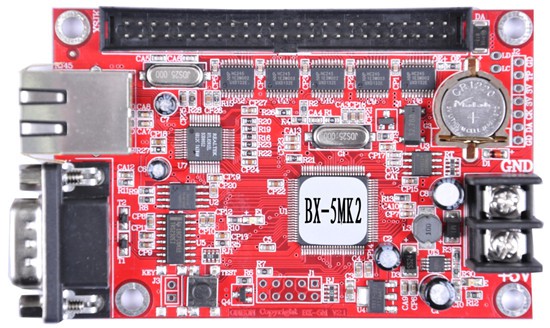

Onbon BX-5MK2 LED control card for led signs
$56.00
Onbon BX-5MK2 LED control card for led signs
- Description
- Additional information
Description
Description
Onbon BX-5MK2 LED control card for led signs
Applications:
Support Ethernet communication mode. Mainly used on industrial field, equipment,logistic warehouse and cluster system, etc.
Controller built-in font library. It could display content when users send characters, which greatly reduce the data flow and decrease the hardness on development.
Support informations dynamically refreshing: with totally 6 dynamic areas, could update informations at the same time, also could update independently;
Dynamic refreshing intervals ≥ 0.5s
BX-5MK series is based on the font library design, and suitable for the requirement of updating informations frequently. Especially for SDK.
Features:
♦Support many kinds of application systems, and satisfy the users’ special requirement;
♦Smart control areas, abundant display functions and high performance price ratio;
♦Good technology and best quality;
♦Support firmware update online, which greatly save the cost on system development and updating;
Technical parameters:
| Product model | BX-5MK2 |
| Product status | 5th generation product, put into the market in December 2012, spot in stock |
| Control area | Single color 72K pixels: 2048*16 2048*32 1536*48 1152*64 768*96 576*128 384*192 288*256 Double color 36K pixels: 2048*16 1152*32 768*48 576*64 384*96 288*128 192*192 144*256 |
| Storage capacity | 2MByte |
| Screen types | All kinds of single and double colors led screen |
| Software function | System cluster management/multi-program editing/multi-area display |
| Program quantity | Support 128 programs, 5 ares for each program |
| Area type | Text/Time/dynamic area |
| Program type | Normal program/Dynamic area |
| Font library | 16 dot matrix/24 dot matrix/32 dot matrix |
| Communication mode | 100M Ethernet/RS232/RS485, standard with 100M Ethernet |
| Interface | 1 nos 50PIN interface |
| Sensors | Not support |
| Brightness | 16 grades brightness, manual and auto-timing adjustment |
| Power on/off mode | Auto-timing powered on/off |
| Voltage | 5V(3.5V~6.5V) |
| Maximum power | ≤1.8W |
| Temperature | -40°C~80°C |
| SDK | Offer communication protocol and Demo software |
| User manual | ” BX-5K user manual ” ” font_controller_protocol ” ” BX-5MK controller hardware Illustration “ |
| Adapter | HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12 HUB64-T12 |
Additional information
Additional information
| Weight | 0.65 kg |
|---|
