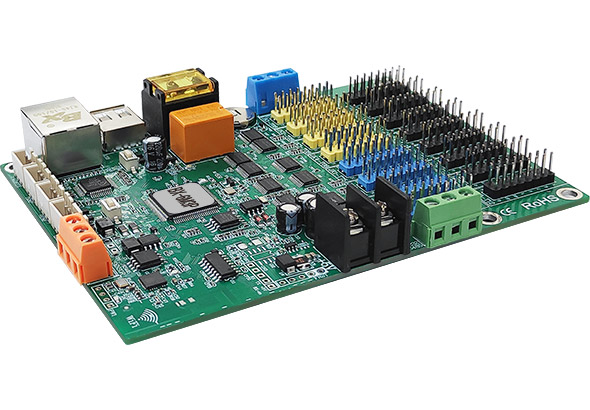

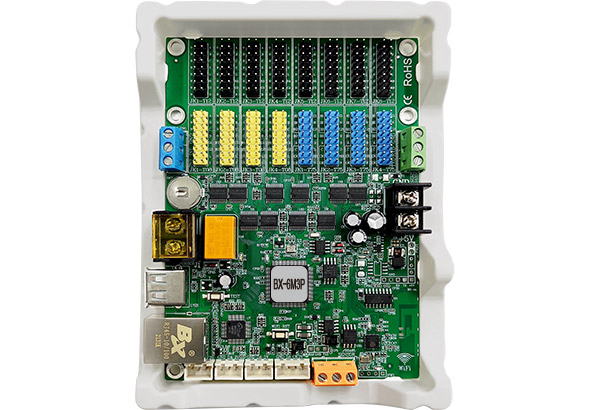

Onbon BX-6M3P/6M3(E+RS232+RS485)/+wifi LED Display Controller Card

Description

Onbon BX-6M3P/6M3(E+RS232+RS485)/+wifi LED Display Controller Card focus on creating “Multi scene” “Full function” LED display project controller.
Comply with 《T COEMA 102S-2018 general technical requirements for asynchronous  no grayscale LED display controller (card)》

1.Improved functions
(1)Support tri-color; Support smart scan; Support all kinds of special modules and full color modules;

(2)BX 6th YY series are integrated with voice chip, which support broadcasting of both Chinese & English;

(3)6M series and 6K / 6M-YY series add on-board wireless WiFi to meet the control requirements of mobile app;

(4)Full series support Environment detecting ;

(5)Full series support cross screen and T-screen;Add 6S series Environment detecting controller;

(6) 6K series support multilingual font.Add 6X series MODBUS controller;

(7) 6E series support super long, super high load: length ≤ 8192 Pixels, height ≤ 1024 Pixels, maximum pixels 4096k.Strong software. (8) 6K series and 6E series support multiple groups of dynamic area and real-time update;

(9) Full series support image moving speed arbitrary adjustment, The moving speed of 6E series under extreme load exceeds 240 pixels / s.

(10) 6X series support MODBUS industrial bus, greatly enhancing the ability of LED display in supporting industrial equipment and industrial field application

(11) BX 6th generation controllers support configuration and modify IP in system;

(12) All BX-6 series can support USB upload program.

(13) Support Mongolian, Hebrew and Arabic. Support vertical compose on horizontal screen.

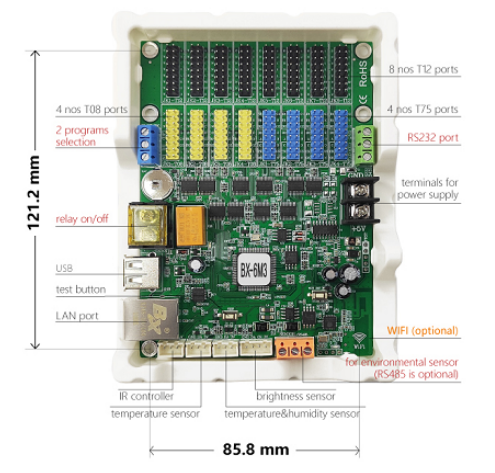

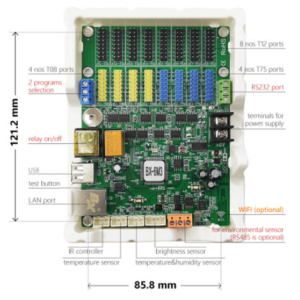

2.More interfaces and excellent technology
(1) Brightness/temperature/temperature&humidity sensor ,IR controller socket and RS485 environment sensor interface on board.(Except BX-6MT/6A)
(2) Relay switch on board .(Except BX-6MT/6A).
(3) 2 / 4-bit program selection interface on board (6E series 4-bit, other 2-bit);

(4) Full communication interface on board. Ethernet+RS232+ RS485+USB port match on BX-6E and BX-6M series; -YY series and some 6M series optional on board wireless WiFi,
(5)UV three proofing adhesive, GB double 85 protection grade, dust, moisture, static electricity, salt spray; (new technology fully used since January 2021)

(6) Most of BX 6th generation products adopt plastic package. Advantages: fire resistance, environmental protection, anti-static, high temperature resistance;

3.Stability

(1)-Ambient temperature is 40 ℃ ~ 80 ℃;

(2)3.5V-5.5V wide voltage;

(3)7*24 hours continuous power supply, ≤ 0.3% failure rate;

(4)IP group setting, MAC conflict detection;

(5)Stable transmit when USB extension cable≤15M;

(6)Monokaryon construction and dikaryon performance;

(7)Support SM16188 module.



4. Information security

(1) the 6M/6E/ 6A&4G series supports Monitor program;

(2) it supports iLedcloud / iLedsys cloud platform (three-level national certification), and has a strict program audit control system;



5. Secondary development

(1) Provide secondary development packages that support major operating systems such as WINDOWS/LINUX/ANDROID/IOS, including various dynamic libraries, communication protocols, test routines, etc.;

(2) Support Java / C / C + + / C # / Delphi and other mainstream programming languages, support users to carry out secondary development on various platforms.



6. BX-6 series controller meet various application scenarios

Bus, taxi, police car and other on-board LED display system.

High speed railway station, subway station, airport, bus station and other traffic guidance LED display system.

Speed limit sign, variable information board, gantry and other highway LED display system.

LED display system, such as road information board, warning signs for illegal vehicles, traffic intersection indicator lights, etc.

LED display system in hospital, government and other office halls.

LED display system of bank, post and mobile Sports lottery, welfare lottery, street shops and other business outlets LED display system.

LED display system in community media, parking lot, gas station and other public service places.

LED display system of dust online, meteorological information and other environmental monitoring.

LED display system of various production line management, command and dispatch center.Automatic ticketing machine, intelligent electric control cabinet, channel turn machine and other equipment supporting LED display system.
