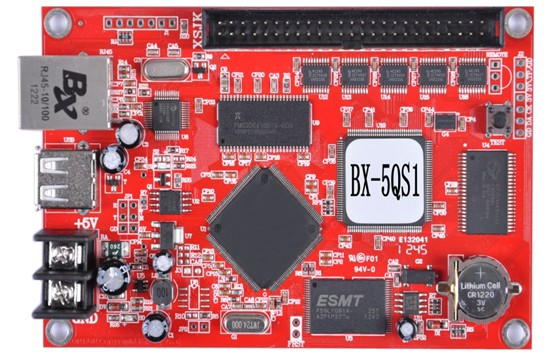

Onbon LED Control card BX-5QS1 (Ethernet+USB) gray scale

Description

Onbon LED Control card BX-5QS1 (Ethernet+USB) gray scale

BX-5QS series model:
BX-5QS1/5QS2/5QS

Applications:
With 100M Ethernet and USB port;
Best price, simple operations;
Widely used in all kinds of small dual color led screen with gray scales and cluster display system;

Features:
Support 100M Ethernet port, bound with MAC mechanism, no need of IP settings, identify and connect intelligently;
Ethernet communication mode support direct link/Ethernet/internet;
Support U disk play;
Smart control area, abundant display functions;
Good technicals, best quality,3.5V-6V wide working voltage, -40°C-80°C working temperature;
Support firmware update;
Support temperature sensor and temperature&humidity sensor;
Support infrared remote control;

Technical parameters:
Product name               BX-5QS1 multi-area dual color led controller with gray scales
Product status              The latest 5th generation products, put into the market on December, 2012.
Control area                  Single & dual color  32K pixels:
2048*16 1024*32 512*64 336*96 256*128 160*192 128*256
Memory voltage            128MByte
Screen type                   All kinds of colors led screen
Software function         Groups cluster management/multi-program editing/multi-area display/multi-

language version
Program type                Normal/Shared program
Program quantity         Support 512 programs, each program with 32 areas
Area type                       Texts composition/graphic/subtitle/animation/time/clock/timer/temperature/temperature & humidity
Frame mode                The advanced colorful border/area border
Background                   Support picture background/animation background
Clock mode                   Dial/in Chinese and English/timer (all support multi-groups)
Communication port    Support 100M Ethernet and USB port
Interface                         1 nos 50PIN/160 lines
Sensor supported        Temperature/temperature & humidity
Remote control             Select program/lock screen/brightness adjustment/power on & off/screen test
Bright regulation           16 grades brightness, support manual and auto-timing adjustment/remote

control
Power on/off                   Support auto-timing power on & off/software power on & off/remote control
Working voltage            5V(3.5V-6V wide voltage)
Maximum power           ≤2.5W
Working temperature    -40℃～80℃
SDK                                Support DLL
Software                        LEDshowTW2013
User manual                 LEDshowTW 2013 software user manual
Adapter                          HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12
