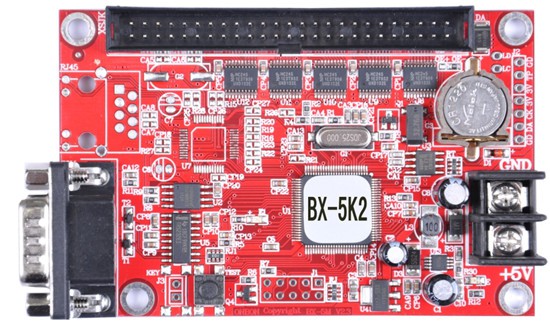

Onbon single color led card BX-5K2 (Font library controller)

Applications:
BX-5K series is based on Font library design,and is suitable for the controller frequently updated information of the application requirements.
Convenient for the user to secondary development.
Dedicated to the industrial field, intelligent bus stop and cluster system, etc.

Features:
♦Controller built-in font library, the user simply send character coding can display content, greatly reduce the data flow, reduce developing difficulty.
♦Support information dynamic refresh: there are five dynamic area, while the updated information, also can update alone.
♦Dynamic refresh interval≥0.5s
♦Flexible and rich display control, High performance price ratio, support firmware update online.
♦BX-5K series is not only support the transmitting method of font code format, and also support the transmitting method of graphic pixels format.

Technical parameters:
Product model                     BX-5K2
Product status                     Fifth generations of the latest mainstream product ,brought to the market on Dec, 2012,spot in stock
Control area                         Single color 72K   2048*16 2048*32 1536*48 1152*64 768*96 576*128 384*192 288*256
Double color 36K  2048*16 1152*32 768*48 576*64 384*96 288*128 192*192 144*256
Storage capacity                  2MByte
Screen types                        All kinds of single and double colors LED screen
Program quantity                support 128 programs,5 areas for each program
Area  type                             Text/time/dynamic area
Program type                        Normal program/ Dynamic area
Font library                           16 dot matrix/24 dot matrix/32 dot matrix
Communication mode       RS232/RS485/GPRS/RF short-range wireless
Interface                               1 nos 50PIN
Sensors supported            Not supported
Bright regulation                 16 grades brightness, manual and auto-timing adjustment
Power on/off mode             Auto-timing powered on/off
Voltage                                  5V(3.5V~6.5V  )
Maximum power                  ≤1.8W
Temperature                        -40°C~80°C
Secondary development    Provide the protocol and Demo software
HUB adapter                         HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12 HUB64-T12
