P1.53 Indoor Video LED Screen Display 480×640
Original price was: $380.00.$260.00Current price is: $260.00.

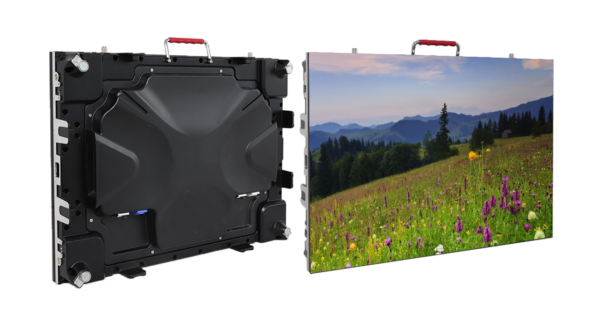

P1.53 Indoor HD Die-cast Aluminum Video LED Screen Display weight Only 8kg, easy for transport, save your labor cost, also light weight is convenient for installtion, assembly and disassembly.Rental LED Display features high brightness, high contrast, high refresh rate and high gray scale,the LED display with vivid image, clean video display and gorgeous picture quality.
- Description
- Additional information
Description
Description
P1.53 Indoor Video LED Screen Display 480×640 Features:

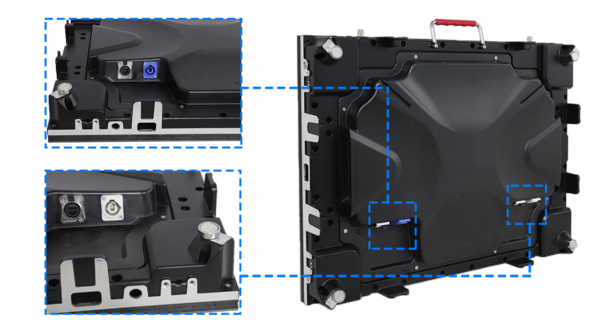

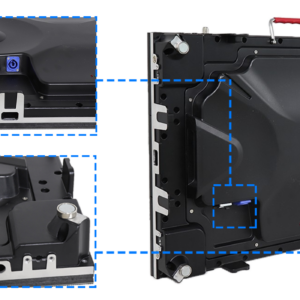

We adopt 320x160mm module and 640x480mm die-cast cabinet to make our indoor HD series. 320x160mm module is popular in the market, hence, reducing the cost. It is full front service with external cabling, which is easier for installation and maintenance. High quality LED lamps and 3840Hz refresh rate ensures perfect display performance, meeting the requirements of live broadcast.
640x480mm standard size cabinet design, 90mm thickness, suitable for all 320x160mm LED display modules
LEEMAN HD Series Rental LED Display features high brightness, high contrast, high refresh rate and high gray scale,
the LED display with vivid image, clean video display and gorgeous picture quality.
LEEMAN HD Series LED screen weight Only 8kg, easy for transport, save your labor cost, also light weight is convenient for installtion, assembly and disassembly.
We use best Driving IC such as 2153,2038S,NATIONSTAR LED to ensure our LED display best brightness.
HD Die-cast Aluminum P1.53 Indoor Video LED Screen Display 480×640 Parameter:
| LED Lamp Specification | |||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | ||
| Red | SMD1010 | 20mcd | 120°/120° | 620nm | 25℃,5mA | ||
| Green | 30mcd | 120°/120° | 530nm | 25℃,2mA | |||
| Blue | 5mcd | 120°/120° | 470nm | 25℃,2mA | |||
| Module Parameter | |||||||
| Pixel Pitch | 1.53mm | ||||||
| Pixel Configuration | NATIONSTAR SMD1010 | ||||||
| Density | 422,500pixels/㎡ | ||||||
| Module Resolution | 208pixel(L) * 104pixel(H) | ||||||
| Module Dimension | 320mm(L) * 160mm(H) * 15mm(D) | ||||||
| Driving Mode | Constant current, 1/26 duty | ||||||
| LED Cabinet | |||||||
| Module Quantity in a Cabinet | 2(L) *3(H) | ||||||

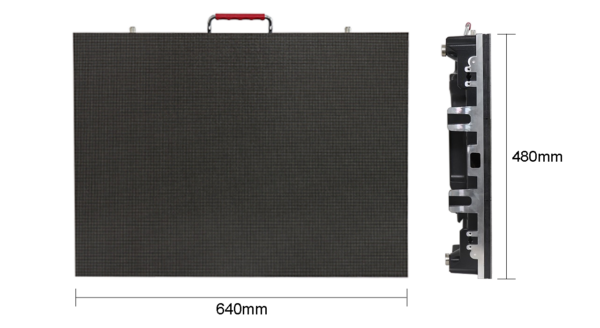

| Cabinet Dimension | 640（L）*480（H）* 90(D)mm | ||||||
| Cabinet Resolution | 416 pixel(L) * 312 pixel(H) | ||||||
| Cabinet Material | Die-cast aluminum | ||||||
| Cabinet Weight | ≈8KG | ||||||
| Electricity Parameter | |||||||
| Optical Ratings | |||||||
| Brightness | ≥500 cd/㎡ | ||||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | ||||||
| Best Viewing Distance | ≥1.53m | ||||||
| Gray Grade | 14 bits | ||||||
| Display Color | 4.4 trillion colors | ||||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | ||||||
| Max. Power Consumption | 580 W/㎡ | ||||||
| Avg. Power Consumption | 195 W/㎡ | ||||||
| Control System | |||||||
| Frame Frequency | ≥60Hz | ||||||
| Refresh Frequency | ≥3,840Hz | ||||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | ||||||
| Control Distance | 100M (Ethernet cable); | ||||||
| 20KM (Optical fiber cable) | |||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | ||||||
| Color Temperature | 5000—9300 adjustable | ||||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | ||||||
| Reliability | |||||||
| Working Temperature | -20～+60 ºC | ||||||
| Storage Temperature | -30～+70 ºC | ||||||
| Working Humidity | 10%～90% RH | ||||||
| Lifetime | 100,000 hours | ||||||
| MTBF | 5000 hours | ||||||
| Continuous Operating Time | ≥72 hours | ||||||
| Protection Grade | IP31 | ||||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||||
Additional information
Additional information
| Weight | 23 kg |
|---|
