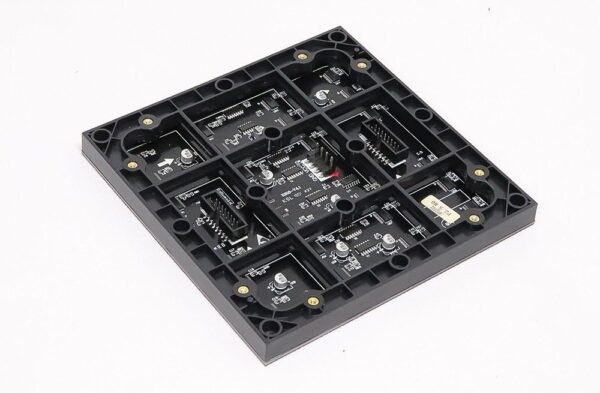

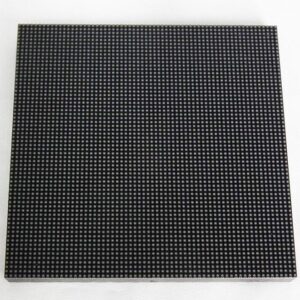

P2.5 LED Module 64X64dot 160×160 Indoor LED Display Module
Original price was: $13.50.$8.00Current price is: $8.00.
LEEMAN Indoor P2.5 64X64dot 160x160mm HD LED Display Module, 72hours continuous aging test ensured no broken pixel, Epistar LEDs high quality parts 2 years warranty.
- Description
- Additional information
Description
Description
P2.5 LED Module 64X64dot 160×160 Indoor LED Display Module
Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P2.5 LED Module 64X64dot 160×160 Indoor LED Display Module Specification
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing
Angle |
Wavelength | Testing
Conditions |
|
|
Red |
SMD 2121 |
70-100mcd |
120 °/120° |
620-625nm |
25℃, 20mA |
|
|
Green |
SMD 2121 |
120-200mcd |
120 °/120° |
515-530nm |
25℃, 10mA |
|
|
Blue |
SMD 2121 |
30-40mcd |
120 °/120° |
465-475nm |
25℃, 5mA |
|
|
Module Parameter |
||||||
| Pixel Pitch | 2.5mm | |||||
| Pixel Configuration | NationStar SMD2121 | |||||
| Density | 160,000 pixels/㎡ | |||||
| Module Resolution | 64pixel(L) * 64pixel(H) | |||||
| Module Dimension | 160mm(L) * 160mm(H) *
18mm(D) |
|||||
| Driving Mode | Constant current, 1/32 duty | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥1,200 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)；
120°(Vertical) |
|||||
| Best Viewing Distance | ≥2.5m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or
automatically by sensor |
|||||
| Max. Power Consumption | 20 W | |||||
| control system | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥3840Hz | |||||
| Input Signal | Composite Video, S-video,
DVI, HDMI, SDI, HD-SDI |
|||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768,
1280*1024, 1600*1200 |
|||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module
by module, cabinet by cabinet |
|||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Additional information
Additional information
| Weight | 1 kg |
|---|
