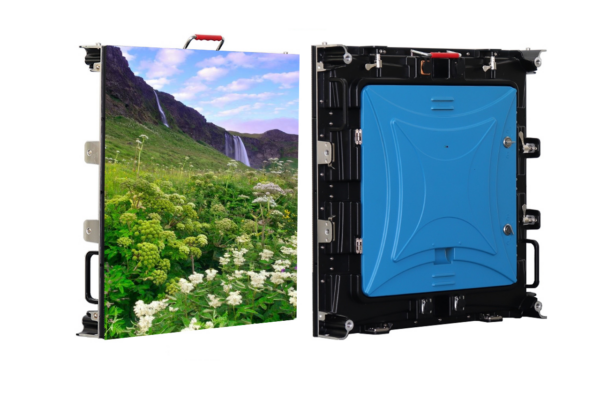

P2.5 Outdoor Led Video Wall Panel 640X640mm Outdoor Event Rental Video LED Screen
Original price was: $320.00.$280.00Current price is: $280.00.
P2.5 640X640mm Outdoor Event Rental Video LED Screen , 160,000 pixel/sqm, 5000 cd/sqm brightness, outdoor HD rental LED display. High display performance competitive price.
- Description
- Additional information
Description
Description
P2.5 Outdoor Led Video Wall Panel 640X640mm Features:

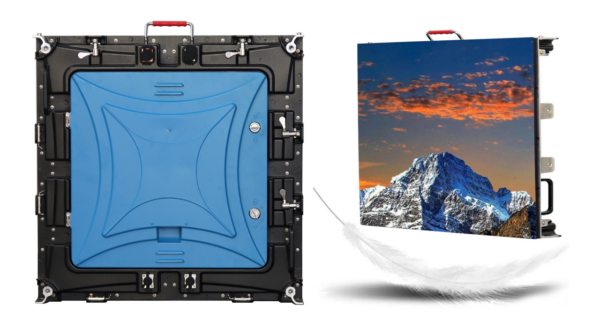

1) Slim cabinet, only 80mm thick.
2) Light weight, only 25KG per pcs of 640x640mm outdoor cabinet.
3) Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.
4) Fast lock design, good for rental hanging use.

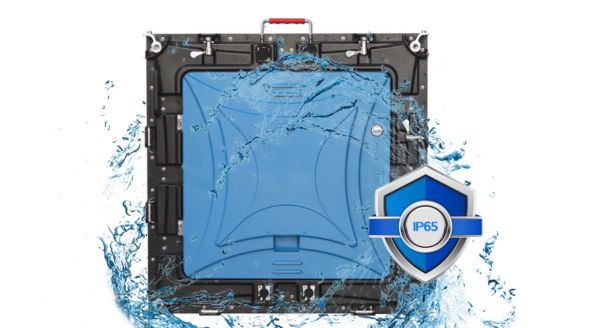

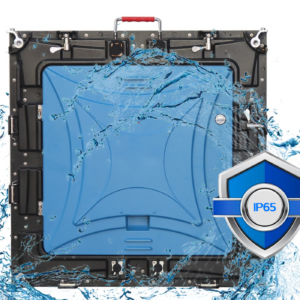

5) IP65 for both front side and IP54 for rear side.
P2.5 640X640mm Outdoor Event Rental Video LED Screen Applications:
Outdoor rental LED display
Outdoor rental led display screen
P2.5 Outdoor Led Video Wall Panel 640X640mm Outdoor Event Rental Video LED Screen Parameters:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD1415 | 48mcd | 140° | 622nm | 25℃,8mA | |
| Green | 155mcd | 140° | 526nm | 25℃,5mA | ||
| Blue | 20mcd | 140° | 470nm | 25℃,3mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 2.5mm | |||||
| Pixel Configuration | NationStar SMD1415 | |||||
| Density | 160,000 pixels/㎡ | |||||
| Module Resolution | 128pixel(L) *64pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/16 duty | |||||
| LED Cabinet | ||||||
| Module Quantity in a Cabinet | 2(L) *4(H) | |||||
| Cabinet Dimension | 640（L）*640（H）* 80(D)mm | |||||
| Cabinet Resolution | 256 pixel(L) * 256 pixel(H) | |||||
| Cabinet Material | Die-cast aluminum | |||||
| Cabinet Weight | ≈12.5KG | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥5,000 cd/㎡ | |||||
| Viewing Angle | 140°(Horizontal); 140°(Vertical) | |||||
| Best Viewing Distance | ≥2.5m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 586 W/㎡ | |||||
| Avg. Power Consumption | 195 W/㎡ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥3,840Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100M (Ethernet cable); | |||||
| 20KM (Optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Additional information
Additional information
| Weight | 28 kg |
|---|
