P2 Indoor 640×640 LED Screen Display
Original price was: $335.00.$255.00Current price is: $255.00.
P2 Indoor Die-Cast Event Rental 640x640mm LED Screen Display , 640x640mm high precise die-cast aluminum cabinet, 3840Hz refresh rate, 14bit color depth, 250,000 pixel/sqm, light weight only 19kg/cabi net.
- Description
- Additional information
Description
Description
P2 Indoor 640×640 LED Screen Display Features :
1)Die-cast aluminum rental cabinet, light weight strong cabinet structure easy to move only .
2) Slim cabinet, only 80mm thick.
3) Light weight, only 19KG for 640x640mm die-cast magnesium cabinet.
4) Non-gaps between cabinets, due to accurate-made die-cast magnesium cabinet.

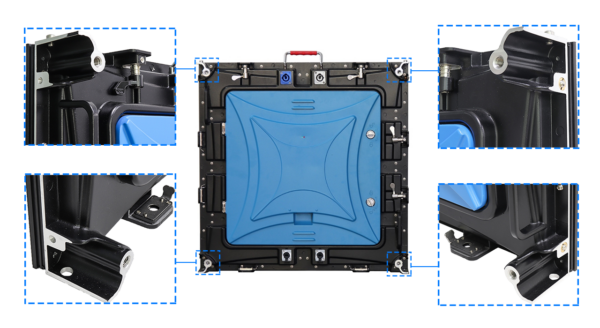

5) Fast lock design, good rental hanging solution.
P2 Indoor Die-Cast Event Rental LED Display 640×640 Applications:
Indoor rental LED panel
Die-Cast Event Rental P2 Indoor 640×640 LED Screen Display Parameter:
| LED Lamp Specification | |||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | ||
| Red | SMD1515 | 38-50mcd | 120° | 618-623nm | 25℃,8mA | ||
| Green | 150-195mcd | 120° | 519-523nm | 25℃,5mA | |||
| Blue | 19-25mcd | 120° | 467-471nm | 25℃,3mA | |||
| Module Parameter | |||||||
| Pixel Pitch | 2mm | ||||||
| Pixel Configuration | NationStar SMD1515 | ||||||
| Density | 250,000 pixels/㎡ | ||||||
| Module Resolution | 160pixel(L) *80pixel(H) | ||||||
| Module Dimension | 320mm(L) * 160mm(H) * 18mm(D) | ||||||
| Driving Mode | Constant current, 1/40 duty | ||||||
| LED Cabinet | |||||||
| Module Quantity in a Cabinet | 2(L) *4(H) | ||||||

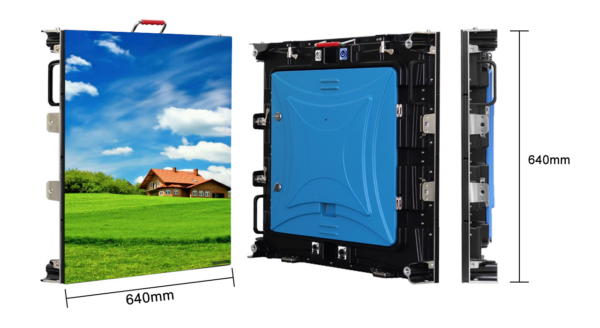

| Cabinet Dimension | 640（L）*640（H）* 80(D)mm | ||||||
| Cabinet Resolution | 320 pixel(L) * 320 pixel(H) | ||||||
| Cabinet Material | Die-cast aluminum | ||||||
| Cabinet Weight | ≈9KG | ||||||
| Electricity Parameter | |||||||
| Optical Ratings | |||||||
| Brightness | ≥800 cd/㎡ | ||||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | ||||||
| Best Viewing Distance | ≥2m | ||||||
| Gray Grade | 14 bits | ||||||
| Display Color | 4.4 trillion colors | ||||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | ||||||
| Operation Power | AC100-240V 50-60Hz Switchable | ||||||
| Max. Power Consumption | 439 W/㎡ | ||||||
| Avg. Power Consumption | 150 W/㎡ | ||||||
| Control System | |||||||
| Frame Frequency | ≥60Hz | ||||||
| Refresh Frequency | ≥3,840Hz | ||||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | ||||||
| Control Distance | 100m(Ethernet cable); | ||||||
| 20KM(optical fiber cable) | |||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | ||||||
| Color Temperature | 5000—9300 adjustable | ||||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | ||||||
| Reliability | |||||||
| Working Temperature | -20～+60 ºC | ||||||
| Storage Temperature | -30～+70 ºC | ||||||
| Working Humidity | 10%～90% RH | ||||||
| Lifetime | 100,000 hours | ||||||
| MTBF | 5000 hours | ||||||
| Continuous Operating Time | ≥72 hours | ||||||
| Protection Grade | IP31 | ||||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||||
Additional information
Additional information
| Weight | 25 kg |
|---|
