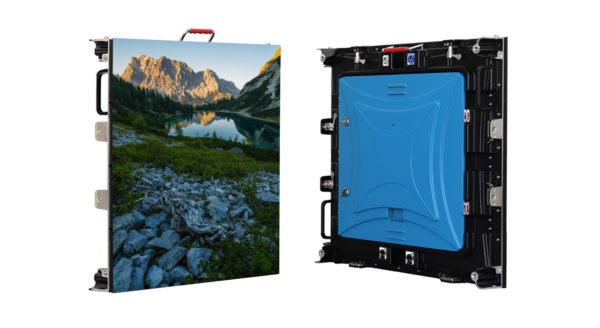

P3.076 Indoor LED Video Display Module 640x640mm
Original price was: $220.00.$165.00Current price is: $165.00.
P3.076 Indoor Die-Cast Rental 640x640mm LED Video Display , 640x640mm high precise die-cast aluminum cabinet, 3840Hz refresh rate, 14bit color depth, 105,689 pixel/sqm, light weight only 19kg/cabinet.
- Description
- Additional information
Description
Description
P3.076 Indoor LED Video Display Module 640x640mm Features :
1)Die-cast aluminum rental cabinet, light weight strong cabinet structure easy to move only .
2) Slim cabinet, only 80mm thick.
3) Light weight, only 9KG for 640x640mm die-cast magnesium cabinet.
4) Non-gaps between cabinets, due to accurate-made die-cast magnesium cabinet.
5) Fast lock design, good rental hanging solution.
P3.076 Indoor Die-Cast Rental 640x640mm LED Screen Display Applications:
P3.076 Indoor Die-Cast Rental 640x640mm LED Video Display Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD2121 | 80-104mcd | 120° | 618-623nm | 25℃,15mA | |
| Green | 270-338mcd | 120° | 515-519nm | 25℃,10mA | ||
| Blue | 31-39mcd | 120° | 465-469nm | 25℃,5mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 3.076mm | |||||
| Pixel Configuration | NationStar SMD2121 | |||||
| Density | 105,689 pixels/㎡ | |||||
| Module Resolution | 104pixel(L) *52pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/26 duty | |||||
| Module Mask | Pure black mask—high contrast screen | |||||
| LED Cabinet | ||||||
| Module Quantity in a Cabinet | 2(L) *4(H) | |||||
| Cabinet Dimension | 640（L）*640（H）* 80(D)mm | |||||
| Cabinet Resolution | 208(L) * 208(H) | |||||
| Cabinet Material | Die-cast aluminum; | |||||
| Cabinet Weight | ≈9KG | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥1000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥3m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 413 W/㎡ | |||||
| Avg. Power Consumption | 138 W/㎡ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥3,840Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); | |||||
| 20KM(optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Additional information
Additional information
| Weight | 28 kg |
|---|
