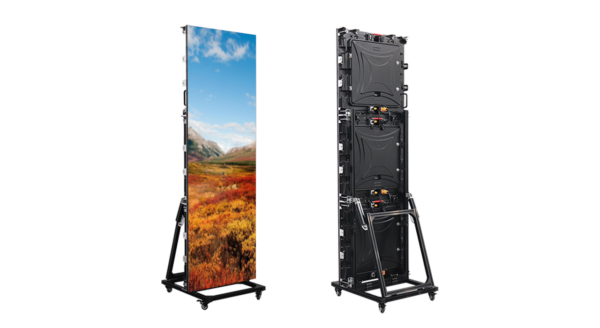

P3.076 Indoor Poster LED Display 1920×640 Front Service Multi-functional Video Poster LED Screen Panel
Original price was: $1,200.00.$600.00Current price is: $600.00.

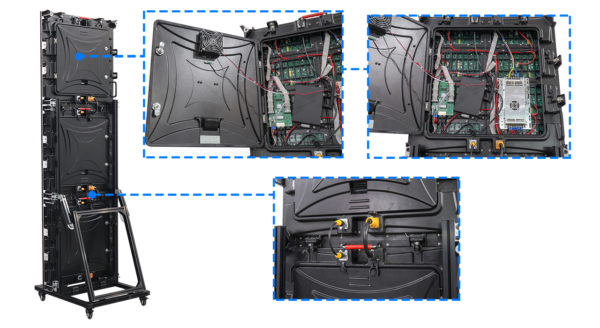

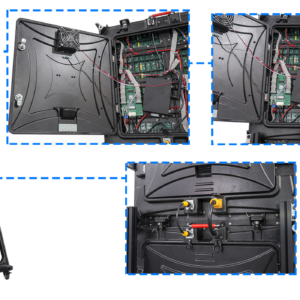

P3.076 Indoor Front Service Multi-functional Video Poster LED Screen Panel can easily carry out pre-maintenance of the power supply, receiver card, hub card and cable by the vacuum suction tool, which is convenient, fast and simple to operate.
- Description
- Additional information
Description
Description
P3.076 Indoor Poster LED Display 1920×640 Front Service Multi-functional Video Poster LED Screen Panel Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD2121 | 80-104mcd | 120° | 618-623nm | 25℃,15mA | |
| Green | 270-338mcd | 120° | 515-519nm | 25℃,10mA | ||
| Blue | 31-39mcd | 120° | 465-469nm | 25℃,5mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 3.076mm | |||||
| Pixel Configuration | SMD2121 | |||||
| Density | 105,689 pixels/㎡ | |||||
| Module Resolution | 104pixel(L) *52pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/26 duty | |||||
| LED Cabinet | ||||||
| Module Quantity in a Cabinet | 2(L) *3(H) | |||||
| Cabinet Dimension | 640（L）*480（H）* 90(D)mm | |||||
| Cabinet Resolution | 208(L) * 156(H) | |||||
| Cabinet Material | Die-cast aluminum | |||||
| Cabinet Weight | ≈8KG | |||||
| Poster Screen | ||||||
| Cabinet Quantity of Whole the Screen | 1(L) *4(H) | |||||
| Display Size | 640（L）*1920（H）mm | |||||
| Screen Dimension (Structure included) | 650（L）*640(W)*2040（H）mm | |||||
| Screen Resolution | 208(L) * 624(H) | |||||
| Screen Weight | ≈43KG | |||||
| Adjustable Angle of Structure | From 80° to 90° | |||||
| Packaging | ||||||
| Packing Method | Cabinets, structure and all parts are packed into one case | |||||
| Packing Box Style | Flight case with wheels | |||||
| Packing Box Dimension | 720（L）*660(W)*780（H）mm | |||||
| Total Volume | ≈0.38CBM | |||||
| Gross Weight | ≈75KG | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥1,000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥3m | |||||
| Gray Level | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 413 W/㎡ | |||||
| Avg. Power Consumption | 138 W/㎡ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1,920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 50m(WIFI); 100m (Ethernet cable); 20KM (Optical fiber cable) | |||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Additional information
Additional information
| Weight | 65 kg |
|---|
