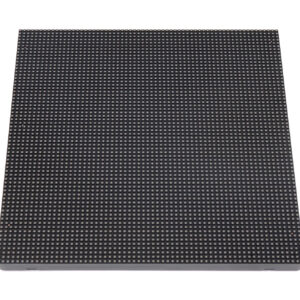

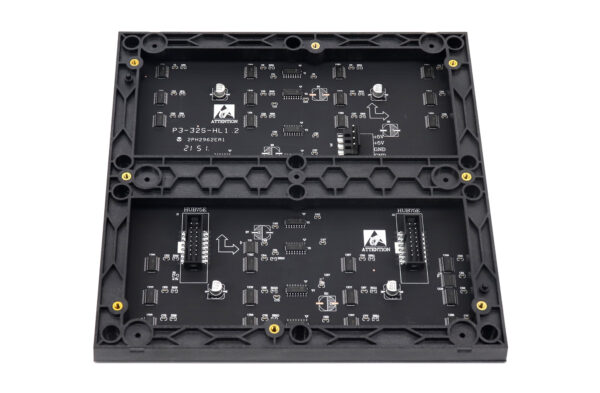

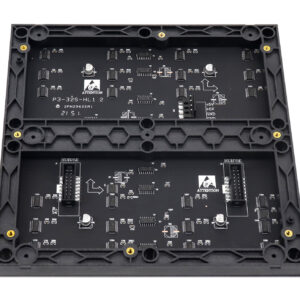

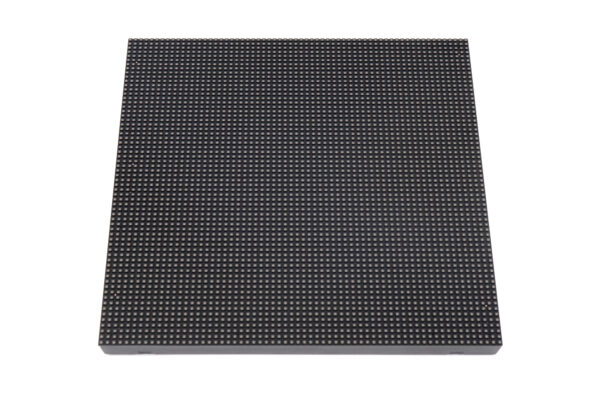

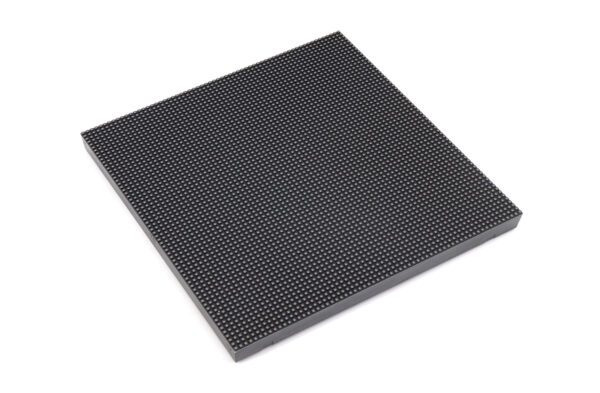

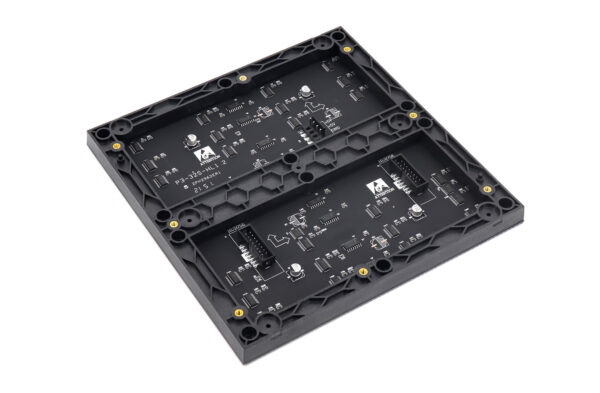

P3 Indoor LED Display Module P3 Indoor SMD2020 192x192mm LED Screen Module

P1.25 P1.53 P1.667 P1.86 Indoor LED Module 320x160mm Indoor HD LED Video Screen Module
P4 Indoor LED Display 320x160mm Indoor HD LED Screen Wall 256X128 LED Module 256X256
0 out of 5

Original price was: $11.00.Current price is: $7.50.

Whole Sale Indoor P3 64x64dot 192X192mm LED Screen Module, 40pcs per package more cost-effective, 72hours continuous aging test ensured no broken pixel, Epistar LEDs high qualtiy parts 2 years warranty.

SKU: P3-I32S-SMD2121-64x64 Category:
Add to wishlist

Description

P3 Indoor1/32Scan 64x64dot 192X192mm LED Screen Module Specification:

LED Lamp Specification
Color Package Intensity Viewing



Angle

 Wavelength Testing



Conditions

Red

SMD2020

70-100

mcd

120

°/120°

620-

625nm

25℃,

20mA

Green

SMD2020

120-200

mcd

120

°/120°

515-

530nm

25℃,

10mA

Blue

SMD2020

30-40

mcd

120

°/120°

465-

475nm

25℃,

5mA

Module Parameter
Pixel Pitch 3mm
Pixel Configuration SMD2020
Density 111,111 pixels/㎡
Module Resolution 64pixel(L) * 64pixel(H)
Module Dimension 192mm(L) * 192mm(H)



* 18mm(D)
Driving Mode Constant current, 1/32 duty

Electricity Parameter
Optical Ratings
Brightness ≥1,000 cd/㎡
Viewing Angle 120°(Horizontal)；



120°(Vertical)
Best Viewing Distance ≥3m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or



automatically by sensor
Max. Power Consumption 19 W
Frame Frequency ≥60Hz
Refresh Frequency ≥960Hz
Input Signal Composite Video, S-video,



DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);



20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024,



1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module,



cabinet by cabinet
Reliability
Working Temperature -20～+60 ºC
Storage Temperature -30～+70 ºC
Working Humidity 10%～90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%

Additional information

Weight 1 kg
