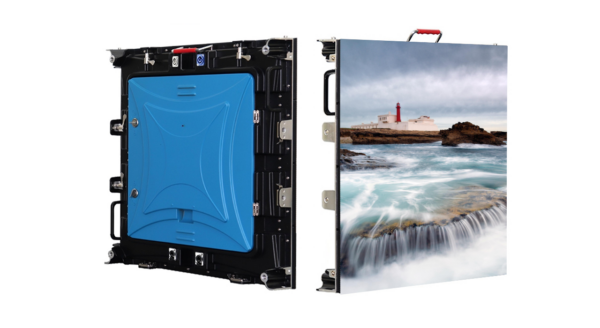

P3 LED Video Wall Indoor Die-Cast Event Rental LED Screen Cabinet 576X576mm
Original price was: $185.00.$110.00Current price is: $110.00.
P3 Indoor Die-Cast Event Rental LED Screen Cabinet 576X576mm, supper light weight is only 8kg/pc , and stronger for hanging and fixed installation. High Definition P3 is very fine image porfermance.
- Description
- Additional information
Description
Description
P3 LED Video Wall Indoor Die-Cast Event Rental LED Screen Cabinet 576X576mm Features :
1)Die-cast aluminum rental cabinet, light weight strong cabinet structure easy to move only .
2) Slim cabinet, only 80mm thick.
3) Light weight, only 8KG for 576x576mm die-cast magnesium cabinet.
4) Non-gaps between cabinets, due to accurate-made die-cast magnesium cabinet.

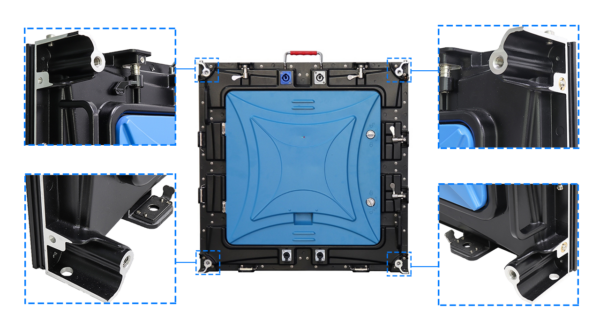

5) Fast lock design, good rental hanging solution.
P3 Indoor Die-Cast Event Rental LED Screen Cabinet 576X576mm Applications:
Indoor rental LED panel
Indoor HD rental LED display
P3 Indoor Die-Cast Event Rental LED Screen Cabinet 576X576mm Specification:
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red |
SMD2121 |
70-100mcd |
120° |
620-625nm |
25℃,20mA |
|
| Green |
120-200mcd |
120° |
515-530nm |
25℃,10mA |
||
| Blue |
30-40mcd |
120° |
465-475nm |
25℃,5mA |
||
|
Module Parameter |
||||||
| Pixel Pitch | 3mm | |||||
| Pixel Configuration | SMD2121 | |||||
| Density | 111,111pixels/㎡ | |||||
| Module Resolution | 64pixel(L) *64pixel(H) | |||||
| Module Dimension | 192mm(L) * 192mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/32 duty | |||||
|
LED Cabinet |
||||||
| Module Quantity in a Cabinet | 3(L) *3(H) | |||||
| Cabinet Dimension | 576（L）*576（H）* 80(D)mm | |||||
| Cabinet Resolution | 192(L) * 192(H) | |||||
| Cabinet Material | Die-cast aluminum | |||||
| Cabinet Weight | ≈8KG | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥1,000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥3m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion Colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 630 W/㎡ | |||||
| Avg. Power Consumption | 210W/㎡ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1,920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Additional information
Additional information
| Weight | 26 kg |
|---|
