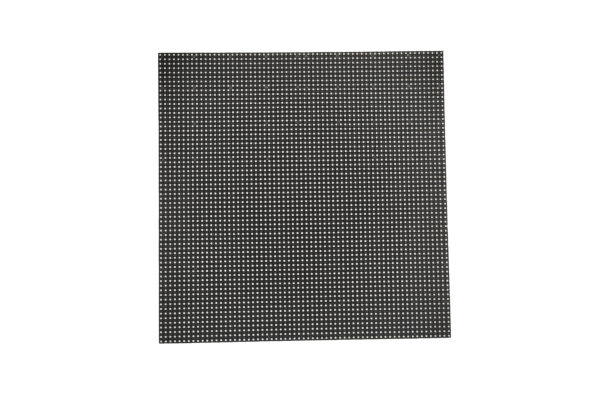

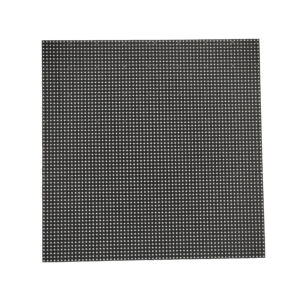

P3 Outdoor LED Module 192x192 P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm - Image 1

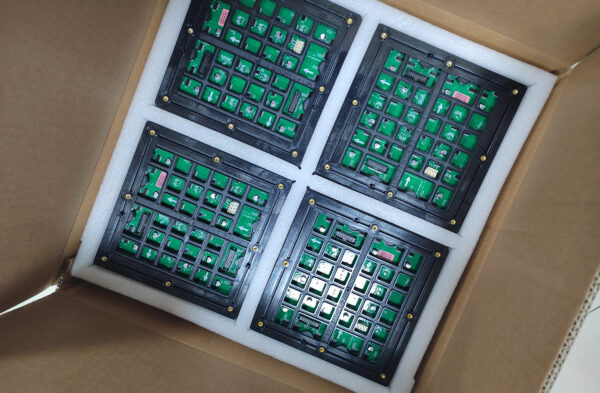

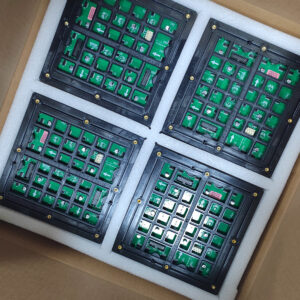

P3 Outdoor LED Module 192x192 P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm - Image 2

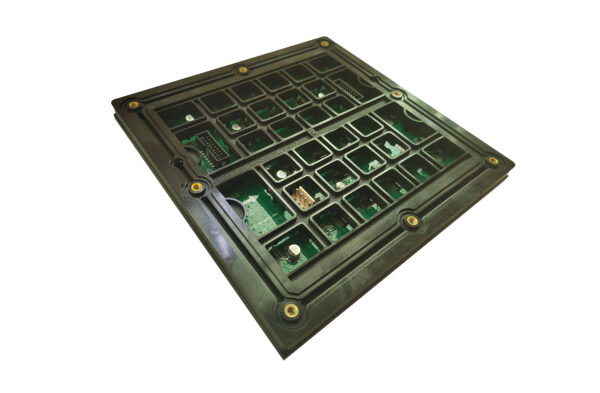

P3 Outdoor LED Module 192x192 P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm - Image 3

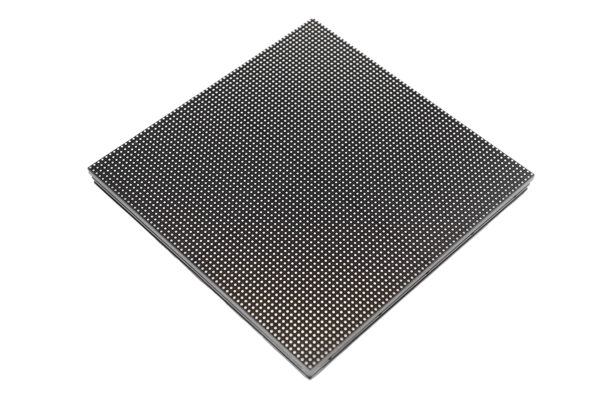

P3 Outdoor LED Module 192x192 P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm - Image 4

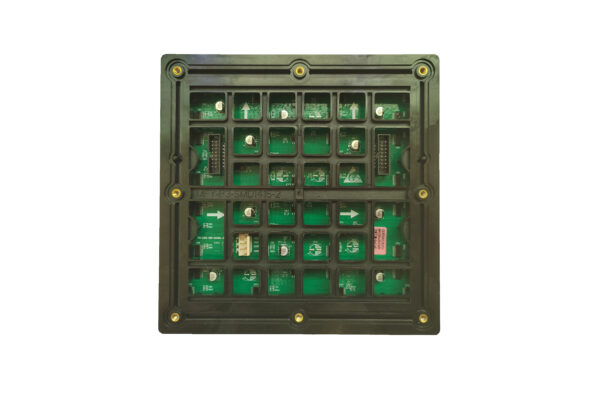

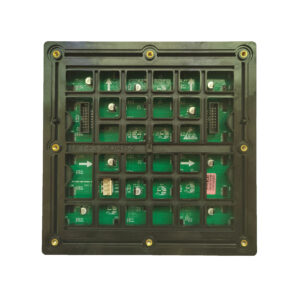

P3 Outdoor LED Module 192x192 P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm - Image 5

P3 Outdoor LED Module 192×192 P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm

Outdoor P3.91 LED Module 250×250 Outdoor P3.91 SMD LED Screen Module 250x250mm
P6 Outdoor LED Module P6 Full color outdoor SMD3535 1/8 scan 192x192mm LED Module
0 out of 5

Original price was: $22.00.Current price is: $12.00.

P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm, outdoor ultra high definition LED Display Module, fine image performance quality. High-end outdoor advertising LED Display Panel.

SKU: P3-O16S-SMD1415-64x64 Category:
Add to wishlist

Description

P3 SMD 1415 Outdoor SMD LED Display Screen Module 192x192mm Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD1415 180mcd 110°/110° 622nm 25℃,15mA
Green 480mcd 110°/110° 522nm 25℃,8mA
Blue 85mcd 110°/110° 472nm 25℃,5mA
Module Parameter
Pixel Pitch 3mm
Pixel Configuration SMD1415
Density 111,111 pixels/㎡
Module Resolution 64pixel(L) * 64pixel(H)
Module Dimension 192mm(L) * 192mm(H) * 25mm(D)
Driving Mode Constant current, 1/16 duty
Electricity Parameter
Optical Ratings
Brightness ≥5,500 cd/㎡
Viewing Angle 140°(Horizontal)； 140°(Vertical)
Best Viewing Distance ≥3m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 30 W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20～+60 ºC
Storage Temperature -30～+70 ºC
Working Humidity 10%～90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65
Out-of-Control Pixel Rate ≤0.01%

Additional information

Weight 1 kg
