P5 LED Display Panel Indoor 160x160mm 1/16 Scan SMD3528 LED Module

Right Angle LED Display Panel P3 Indoor Video LED Panel Screen Right Angle 192mmx192mm LED Module
Right Angle LED Display Module P2.5 Indoor 160×160 Full Color LED Display Factory
0 out of 5

$13.00

Pixel Pitch:5mm
LED Type: SMD3528
Module Size: 160*160 mm
Model Pixel: 32*32 Pixels

SKU: LEEMAN-P5 LED Display Panel Category:
Add to wishlist

Description

P5 LED DISPLAY PANEL INDOOR 160X160MM 1/16 SCAN SMD3528 LED MODULE

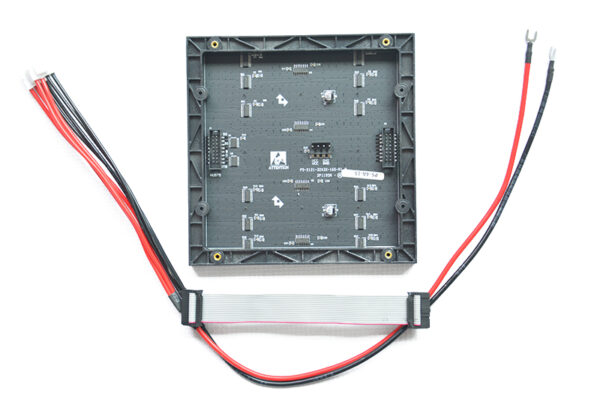

Indoor P5mm SMD LED Display Module Size is 160mmx160mm With 32×32 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
  • If you want to build led screen, please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

  • LED Module including the Data & Power Cables.
  • 2 Years Warranty, Ship in 24 hours, Free Online Support.
  • LED Module Can Work With Linsn, Novastar, Colorlight, Xixun huidu LED Control Card Etc.
  • 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

P5 LED Display Panel Indoor 160x160mm 1/16 Scan SMD3528 LED Module Main Specifications:

Items Parameter
Product Model P5mm Indoor LED Module
Module size 160mmx160mm
resolution ratio 32*32dots
Pixel pitch 5 mm
Pixel configuration RGB 3in1
Driving method Constant Current Driving,1/16 scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD3528

Electrical Parameters
Frame rate 60Hz/Second
Refresh rate ≥3840HZ
Brightness in White Color (cd/m2): 800-1000 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤300W/m2 (MAX 700)
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 5m-50m
Input Voltage 110V/60HZ-220V/50Hz Switchable

Additional information

Weight 1 kg
