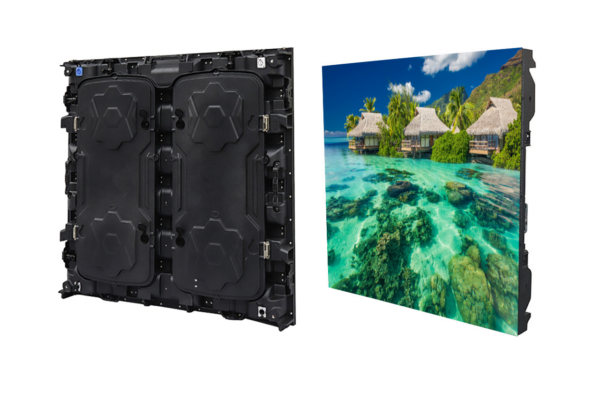

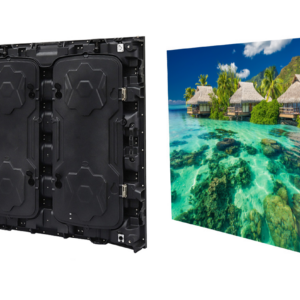

Platinum LED Screen Energy Saving Dual Service LED Display P8 Outdoor 960x960mm Die-cast Fixed Installation LED Panel Wall For Video
Original price was: $330.00.$280.00Current price is: $280.00.
Model: P8-OC5S-SMD3535-40×20-L960xH960 Brightness:≥6000CD/㎡ Refresh frequency:≥1920Hz Viewing angle:120° Product description: P8 SMD3535 outdoor commercial LED display board, high brightness, high refresh frequency, low attenuation, high reliability, good consistency, non-mosaic phenomenon.
- Description
- Additional information
Description
Description
P8 Outdoor 960x960mm Die-cast Fixed Installation LED Panel Wall For Video Features:

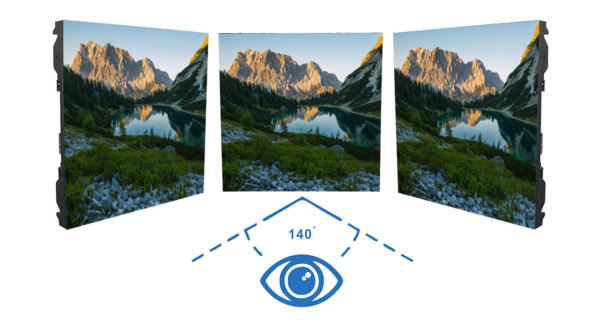

1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) High Level waterproof level which is suit for outdoor fixed installation.
5)1920HZ refresh rate, 14bit color depth,15,625 pixel/sqm.
6) Easy to move and install .
P8 Outdoor 960×960 Platinum Pro Series Outdoor LED Displays Applications:
Exterior advertising LED display
Exterior rental LED display
P8 Outdoor 960×960 Platinum Series Outdoor LED Displays (Common Cathode energy saving technology for LED displays) Parameter:
| Module Parameter | |
| Pixel Pitch | 8mm |
| Pixel Configuration | SMD3535 |
| Density | 15,625 pixels/㎡ |
| Module Resolution | 40pixel(L) * 20pixel(H) |

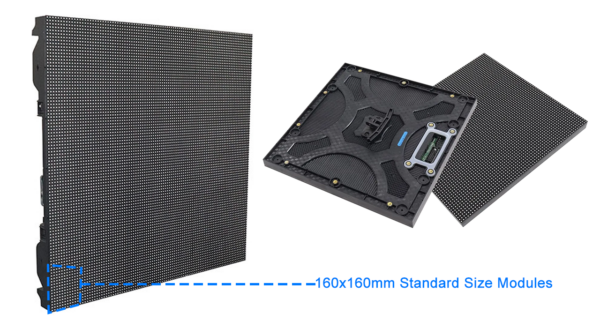

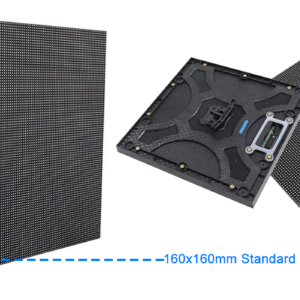

| Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) |
| Driving Mode | Constant current, 1/5 duty |
| Module Mask | Pure black mask—high contrast screen |
| LED Cabinet | |
| Module Quantity in a Cabinet | 3(L) * 6(H) |

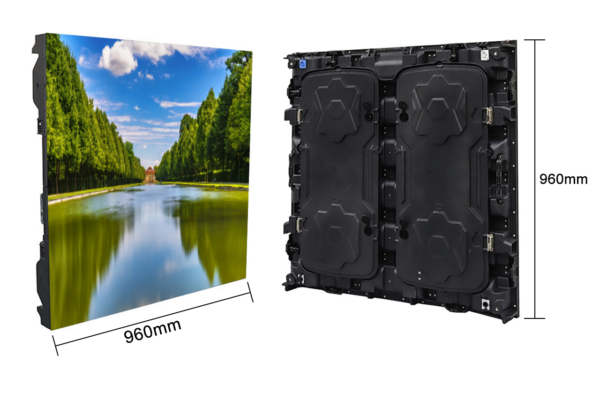

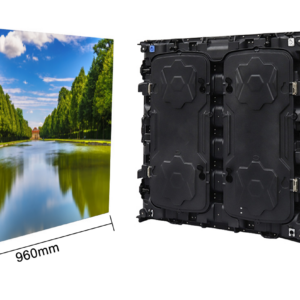

| Cabinet Dimension | 960（L）* 960（H）* 144(D)mm |
| Cabinet Resolution | 120(L) * 120(H) |

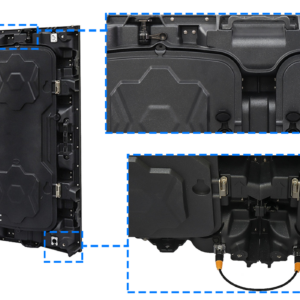

| Cabinet Material | Die-Cast magnesium alloy |
| Cabinet Weight | ≈25KG |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥6,000 cd/㎡ |
| Viewing Angle | 120°(Horizontal); 120°(Vertical) |
| Best Viewing Distance | ≥8m |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion Colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 600W/㎡ |
| Avg. Power Consumption | 200W/㎡ |
| Control System | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥3,840Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); |
| 20KM(optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |

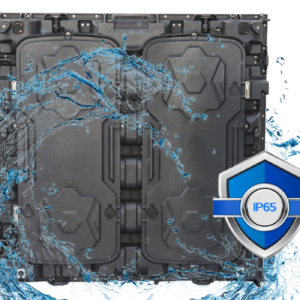

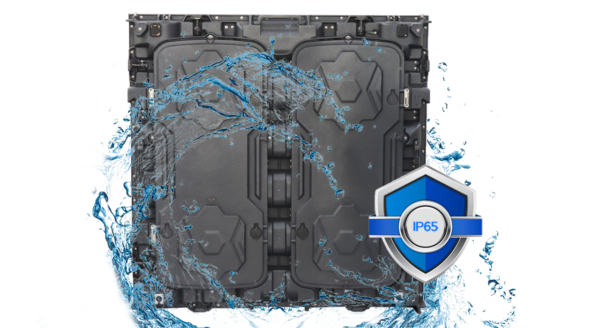

| Protection Grade | IP65(front), IP54(rear) |
| Out-of-Control Pixel Rate | ≤0.01% |
Additional information
Additional information
| Weight | 40 kg |
|---|
