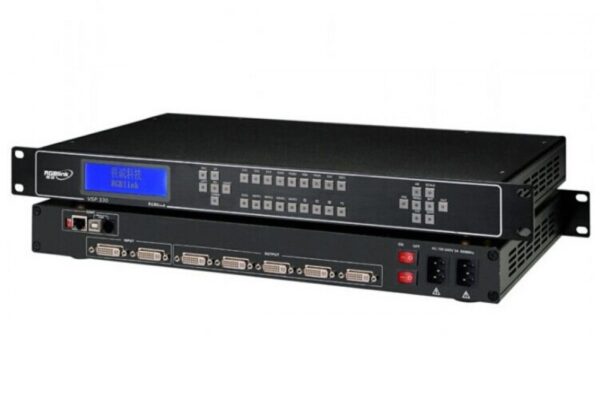

RGBLink VSP330 HD LED Video Processor
$4,980.00
Support bilingual menu of both English and Chinese
Support PIP display
Supports 12 seamless switching mode
Support image scaling and image coordinate shift functions
Support fade in/out and fading time is optional
Support self-test function
Support multi saving mode
Supported resolution range: 800x600x60 to1920x1080x60
Multi modes support 1 distribute to 4, horizontal 1 zoom to 2, vertical 1 zoom to 2, horizontal 1 zoom to 4 and so on.
- Description
- Additional information
Description
Description
RGBLink VSP330 HD LED Video Processor：
Input: 2xDVI ( HDMI1.3 Compliant)
Output: 1xDVI ( HDMI1.3 Compliant)
Features of RGBLink VSP330 LED Display Video Processor:
Support bilingual menu of both English and Chinese
Support PIP display
Supports 12 seamless switching mode
Support image scaling and image coordinate shift functions
Support fade in/out and fading time is optional
Support self-test function
Support multi saving mode
Supported resolution range: 800x600x60 to1920x1080x60
Multi modes support 1 distribute to 4, horizontal 1 zoom to 2, vertical 1 zoom to 2, horizontal 1 zoom to 4 and so on.
Specifications of RGBLink VSP330 Video Processor:
| VIDEO INPUT | |
| Quantity/signal type | 2 Graphic DVI and HDTV
DVI |
| Connector | 2 DVI-I |
| Nominal level | TMDS level |
| Standard | HDMI 1.3 |
| Impedance | 75ohm |
| Horizontal Frequency | auto detect 15kHz to
100kHz |
| Vertical Frequency | auto detect 50Hz to
120Hz |
| Resolution Range | auto detect 640×480 to
1600×1200 |
| VIDEO PROCESSING | |
| Encoder
(scan converted output) |
10 bit digital |
| Digital sampling(program
and preview outputs) |
30 bit;10 bits per color;
165MHZ standard |
| Colors(program
and preview outputs |
16.78 million |
| Horizontal Filtering(scan
converted output) |
3 levels |
| Vertical Filtering(scan
converted output) |
3 levels |
| Encoder Filtering(scan
converted output) |
3 levels |
| VIDEO OUTPUT | |
| Quantity/signal type | 4 DVI,1 loop DVI
output |
| Connector | 5 DVI-I |
| Nominal level | TMDS level |
| Impedance | 75 ohms |
| CONTROL | |
| Front panel operation | |
| TCP/IP、USB、RS232 | |
| GENERAL | |
| Temperation | 0℃-40℃ |
| Humidity | 10%-85% |
| Enclosure Type | 1U Rackmount |
| Enclosure Dimensions | 480mm*268mm*44mm |
Additional information
Additional information
| Weight | 2 kg |
|---|
