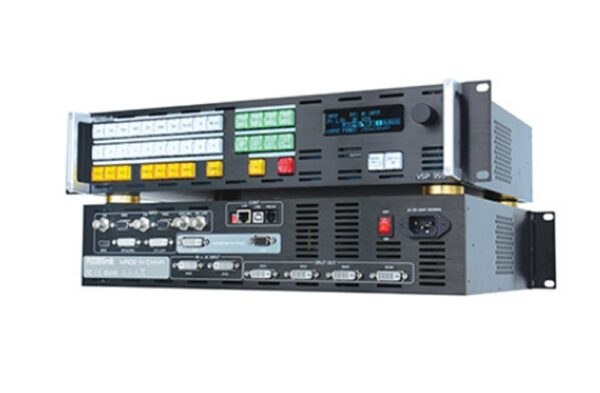

RGBLink VSP3550S 4K HD LED Video Processor
$3,750.00
Max 4Kx1K input resolution
Max 4Kx2K or 8KK pixels sync splicing for solid edge blending
User defined output resolution
Seamless switching between the inputs
DSK subtitle overlay and Color Key function
PIP（Picture in Picture）adjustable function
Auto adjust for VGA inputs
- Description
- Additional information
Description
Description
RGBLink VSP3550S 4K HD LED Video Processor Features:
The VSP 3550S is the latest cost to performance product released based on well know VSP 3600 and VSP 198S technology.The VSP 3550S supports video and graphic inputs including 2 Composite(CVBS),2 VGA (Composite with YpbPr),1 DVI,1 HDMI,1 SDI,and 4 DVI outputs.The VSP 3550S detects the input format automatically.With the advanced scaling engine and sync splicing technology it fulfills the high-end requirements of high resolution display applications.
The VSP 3550S supports single input to zoom in up to 4Kx2K output resolution(8KK pixels).Also,It supports 2 DVI inputs with resolution up to 4Kx1K for better output image quality respresentation.The VSP 3550S has a in seamless switching engine for the inputs built-in to meet the presentation requirement.
RGBLink VSP3550S 4K HD LED Video Processor Parameters:
| Input | 2 x CVBS |
| 2 x VGA | |
| 1 x SDI | |
| 1 x SDI LOOP | |
| 1 x HDMI | |
| 1 x DVI | |
| 1 x DVI LOOP | |
| 2 x DVI（4Kx1K） | |
| Output | 4 x DVI |
| 1 x DVI (Preview) | |
| 1 x VGA (Preview) | |
| Operations | Front panel |
| Net Size | 480mmx331mmx89mm |
| Package size | 585mmx405mmx195mm |
| Net weight | 4.6kg |
| Package weight | 8.4kg |
| Work Temperature | 0°C~40°C |
| Relative Humidity | 10%~85% |
Additional information
Additional information
| Weight | 2 kg |
|---|
