RGBLink VSP516S LED Video Processor - Image 1

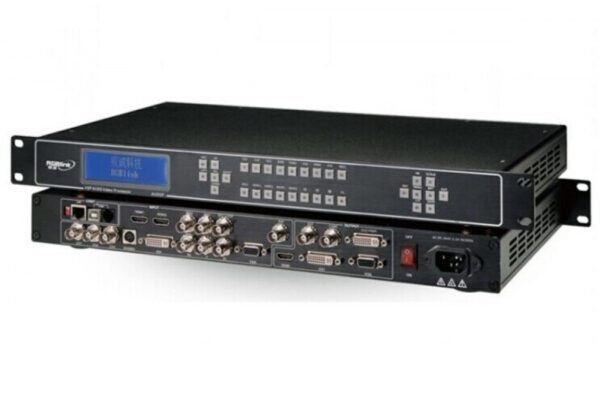

RGBLink VSP516S LED Video Processor

Colorlight X1 LED Display Screen Controller
Colorlight X26M LED Display Screen Video Controller
0 out of 5

$1,140.00

· Digital video decoder
· Seven selectable vidoe sources directly from the front panel. including:
computer VGA, component video (SD orHDTV), S-video or composite video. · Two video outputs : (1) VGA and (1) DVI
· Adjustation and conversion of user-defined Aspect Ratio
· Adjustation of video (NTSC, PAL) Brightness, Contrast

SKU: RGBLink-VSP516S Category:
Add to wishlist

Description

Features RGBLink VSP516S LED Video Processor:

· Digital video decoder
· Seven selectable vidoe sources directly from the front panel. including:
computer VGA, component video (SD orHDTV), S-video or composite video. · Two video outputs : (1) VGA and (1) DVI
· Adjustation and conversion of user-defined Aspect Ratio
· Adjustation of video (NTSC, PAL) Brightness, Contrast
· Value of user-defined Gamma from -1,2 to +1,6
· PIP – Picture-in-picture
· Image crop y zoom
· Freezing of the picture
· Multiple Preset modes.
· 10 bits processing
· Window size and position of PIP LED and user-defined from the front panel.
· Audio switching is synchronized with the video source.
· Card insertion slot LED transmission.
· USB, Ethernet (TCP/IP) and RS-232 real-time control.
· Optional input card:Input (1)- HD-SD SDI



Specifications of RGBLink VSP516S LED Video Processor:

Input
Audio input  5 channels on RCA connector
Scaled channel input · Analog Input(6): computer

videoVGA,video YPbPr

(SD or HD), S-video or composite

video on conector BNC

· Input DVI(1): per SMPTE

625/25, compatible

with HDMI 1.3
Scaler input resolutions ·PAL/NTSC; 480i,576i
·Computer resolution:
1024×768×60, 800×600×60,
640×480×60
·Resoluciones HDTV up

to 720p, 1080i, 1080p@50
Output
Audio Output 1 canal en 1/4’’ connector
Digital Output ·VGA en conectores de 15

clavijas·DVI digital en

conector DVI-I
Output Resolutions ·Resoluciones de VGA (VESA)
800X600×60Hz 1024×768×60Hz，

1280×1024×60Hz

·Resoluciones de DVI (VESA):

800×600×60Hz，1024×768×60Hz，

1280×1024×60Hz,
User Control
Front Panel Control  LED panel, keyboard y LED lighted

push button
Remote Control The unit may be controlled from a

computer or external controller

through LAN (TCP/IP), serial

RS-232 or USB.
General ·  Height:1.7″ (4,4 cm)
·  Length:17″ (43,0 cm)

or 19″ (48,3 cm)

·  Width: 11.9″ (30.3 cm)
·  Weight:2,5 kg.
·  Shipping weight:4,5 kg.
Power 85-264V 2A IEC-3
Environment Temperature:0-40 grades C;

Humidity: 10-90%
Warranty One year

Additional information

Weight 2 kg
