RGBLink VSP9516S LED Video Processor
$2,100.00
Max2048×1152@60Hz/2560×816×60Hz input/output resolution
User-defined resolution adjustment
Picture in picture
Audio and video sync
Seamless switching between inputs
DSK for subtitle overlay
LED display connection from front panel directly
Two LED sending card install inside already
- Description
- Additional information
Description
Description
RGBLink VSP9516S LED Video Processor Features:

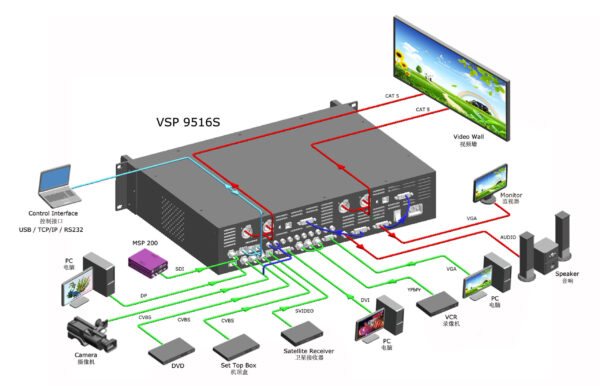

VSP 9516S is the first LED video processor developed by RGBlink which does support the LED screen connection function. It supports inputs including 3×CVBS, 1×S-Video, 1×YPbPr, 1×VGA, 1×DVI-I (compatible with HDMI), 1×Displayport, 1×3G-SDI, up to 9 channels inputs, and 2×DVI-I, 1×VGA, up to 3 simultaneous outputs. VSP 9516S is not only a video scaler for video and graphic processing or just provides power and makes room for the sending cards to install inside.
VSP 9516S embedded a special menu for local control LED screen by its each LED sending card in connected, operator will easily operate display connection, brightness adjustment, Gamma correction by menu after decide the sending card model. VSP 9516S integrates Display Setting Remote Control Interface with the video processing remote control software also, operator will have more remote control options.
RGBLink VSP9516S LED Video Processor Parameters:
| Input | 3 x CVBS |
| 1 x S-Video | |
| 1 x YPbPr (Standard or HD) | |
| 1 x VGA | |
| 1 x DVI (HDMI 1.3 ) | |
| 1 x SDI (3G-SDI,S module) | |
| 1 x Displayport | |
| 1 x Balanced analog audio | |
| Output | 2 x DVI |
| 1 x VGA (Via DVI2+VGA OUT port) | |
| 1 x Balanced analog audio | |
| 4 x LAN (Output of sending card) | |
| Control Interface | Local front panel operation |
| Remote RS232, USB, TCP/IP control | |
| Net Size | 480mmx331mmx89mm |
| Package size | 585mmx405mmx195mm |
| Net weight | 5.2kg |
| Package weight | 8.6kg |
| Work Temperature | 0°C~40°C |
| Relative Humidity | 10%~85% |
