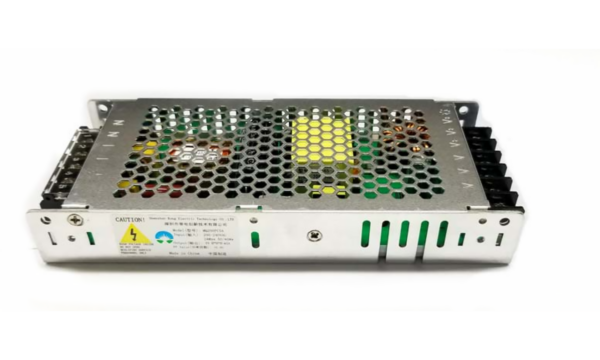

Rong-Electric MQ200PC5A LED Display Power Supply
$14.00
The power supply was designed for LED display :,small size, high efficiency,stability, and reliability. Power supply has input undervoltage, output current limiting,output short circuit protection. Power supply will apply with high rectification which greatly improves the power efficiency,can reach 85.5% above, saving energy consumption.
- Description
- Additional information
Description
Description
Rong-Electric MQ200PC5A LED Diaplay power supply Overview:
The power supply was designed for LED display :,small size, high efficiency,stability, and reliability. Power supply has input undervoltage, output current limiting,output short circuit protection. Power supply will apply with high rectification which greatly improves the power efficiency,can reach 85.5% above, saving energy consumption.
Rong-Electric LED Display power supply Main Electrical Specification:
| Output Power
（W） |
Input voltage range
（Vdc） |
Output voltage
（Vdc） |
Output Current（A） | Regulation accuracy |
Ripple & Noise（mVp-p） | |
| 300 | 160—264 | +5.0 | 0-60 | ±2% | ≤200 |
Rong-Electric MQ200PC5A LED Display power supply Environmental conditions:
| No. | ITEM | Specifications | Units | Remarks | |
| 1 | Permanen-toperating temperature |
-30-70 | ℃ | Small size power supply, bottom Need to add 200*200*3mm Heat sink auxiliary heat dissipation |
|
| 2 | Storage temperature | -40-80 | ℃ | ||
| 3 | Work Relative Humidity | 10-90 | % | ||
| 4 | Storage Relative Humidity |
10—90 | % | ||
| 5 | Cooling mode | Ventilation cooling | |||
| 6 | Atmospheric pressure | 80—106 | Kpa | ||
| 7 | Altitude | Altitude
0-3000 |
M | ||
| 8 | Vibration | 10-55Hz 19.6m/S²(2G),20 minutes each along X,Y and Z axis. |
Specification Download:
Rong-Electric MQ200PC5A LED Display ultra-thin power supply Specification
Additional information
Additional information
| Weight | 0.65 kg |
|---|
