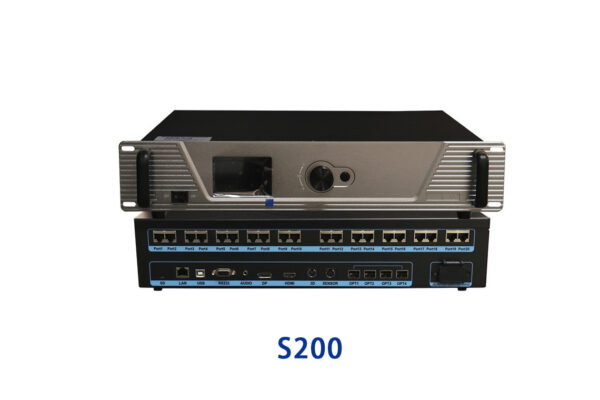

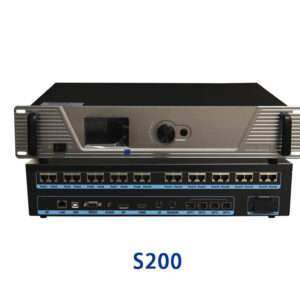

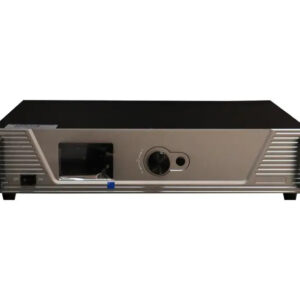

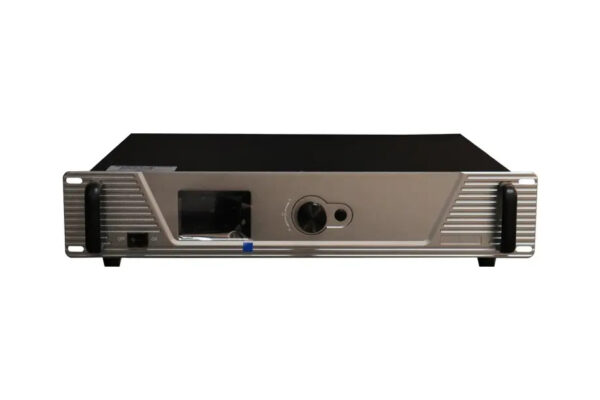

Sysolution S200 Independent Main Splicer LED video processor 10.4 Million Pixels

Description

Product Description:

Sysolution S200 has the ability to receive multiple types of video signals, ultra-high definition full 4K x 2K @ 60Hz image processing capability and transmitting capability; can send processed video to the LED display through the network and optical fiber port; and has a powerful processing capability to effectively improve the utilization of the band load powerful processing capability, ultra-stable performance and super high cost performance.

Applicable scenarios:

The S200’s powerful video processing and distribution capabilities can be used in a wide range of applications including high-end rental and small pitch displays for stages, conferences, events, exhibitions and more.

Product Features:

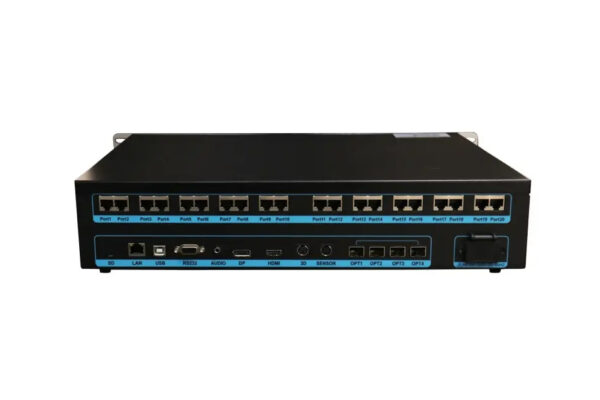

1. Rich input interfaces: with 1 DP1.2 input; 1 HDMI2.0 input; 1 AUDIO audio input.

2. Multiple output interfaces: 20 gigabit network outputs; 4 fibre optic bi-directional duplex transmissions.

3. Multiple communication control modes: 1 USB interface; 1 serial interface; 1 100 megabit network interface.

4. Support for network port loop backup, dual master backup.

5. Support for a wide range of preset resolutions; and support for resolution customisation.

6. Compatible with a wide range of frame rate inputs such as 30HZ, 50HZ, 60HZ and 120HZ.

7. Support for the monitoring of transmitter card operating parameters and status by the host software.

8. Support for reading back configuration parameters.

9. Support for Gigabit network BER check.

Specification Download:
Sysolution S200 Independent Main Splicer LED video processor specification
