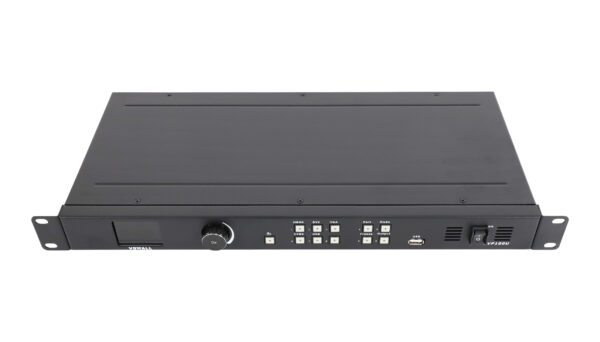

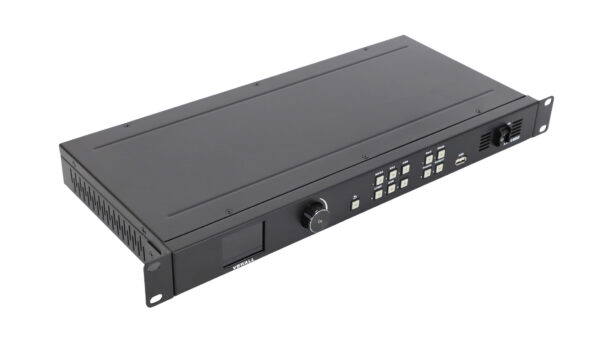

VDWALL LVP100U Cost-effective USB ports Led screen video processor
$140.00
VDWALL LVP100U is equipped with 1 video input card which can access in 6 channels of video source, includes HDMI, DVI, VGA, CVBS, USB(Front) and USB(Rear)，if both front and rear USB ports have valid signal,front USB port secure higher priority
- Description
- Additional information
Description
Description
VDWALL LVP100U Cost-effective USB ports Led screen video processor Features:
●NTSC image and video processing, you can customize soft or standard two effects
5-way input, 3-way output, audio output, to meet the application requirements of most small LED displays
●A variety of output resolutions can be selected, which perfectly fits the size of the LED display
●A variety of input DVI EDID resolutions can be selected and set to perfectly realize point-to-point display
●Seamless switching, fade in and fade out switching,
● Customize color, clarity and brightness
●Preset scenes, providing 10 preset storage spaces, quickly applying various scenes
●Manipulation method: panel buttons. The operation is flexible and convenient.
●Built-in 2 LED sending cards
◆24/7 application, high reliability and stability
VDWALL LVP100U Cost-effective USB ports Led screen video processor Specifications:
Specification of OutputsOthers
| Specification of Inputs | ||
| Quantity/Type | 1×CVBS 1×VGA（RGBHV） 1×DVI（ VESA / CEA-861） 1×HDMI（ VESA / CEA-861） 2×USB（USB2.0） |
|
| Composite Video | PAL / NTSC | |
| Video Amplitude/ Impedance |
1V (p_p) / 75Ω | |
| HDMI | PC（VESA Standard）/ HDMI1.3（CEA-861） |
≤1920×1280@60Hz |
| DVI | PC（VESA Standard）/ DVI1.4（CEA-861） |
≤1920x 1280@60Hz |
| VGA | VGA（RGBHV Standard） | ≤1920×1080@60Hz |
| CVBS | Support PAL, PAL-M/N, NTSC, SECAM format |
|
| USB | USB2.0 standard | ≤1920 x 1080@60Hz |

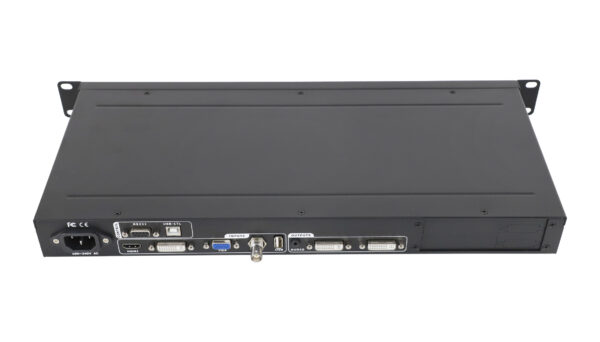

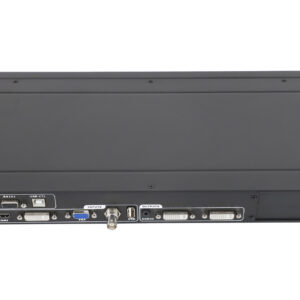

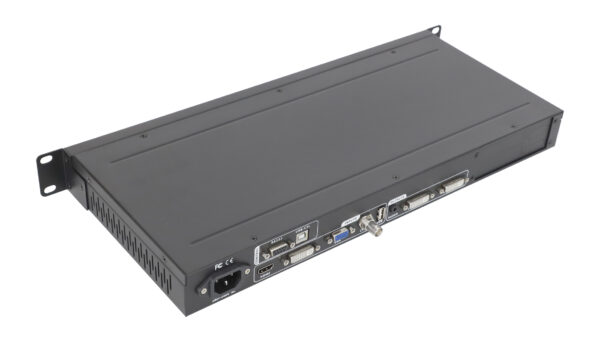

| Input Terminal | CVBS：BNC VGA：15pin D_Sub ( Female ) DVI：24+1 DVI_D HDMI：HDMI Type A |
|
| Output Signal | ||
| Amount / Type | 2x DVI 1x AUDIO |
|
| DVI Format | 1024×768@60Hz 1280×720@60Hz 1280×1024@60Hz 1600×1200@60Hz 1920×1080@60Hz 1920×1200@60Hz 1920×1280@60Hz |
|
| Customized Output Resolution |
@60Hz： (2.65 million pixels) 4096*640@60Hz 3840*720@60Hz 2560*1080@60Hz 1340*2018@60Hz @30Hz： 530（ 5.3 million pixels） 4096*640@30Hz 3840*720@30Hz 2560*1080@30Hz 1340*2018@30Hz |
|
| AUDIO Format | Stereo Output | |
| Output Terminal | DVI OUT：24+1 DVI_D AUDIO OUT：AUDIO |
|
| Others | ||
| Control Port | RS232 | |
| Control& Update | USB-CTL | |
| Input AC Power | 100-240VAC 50/60Hz | |
| Packing Size | 535 (L) x 315 (W) x 145 (H)mm | |
| Weight | G.W.: 4Kg, N.W.: 2.5Kg | |
| Power Consumption | 22W | |
| Ambient Temperature | 0-50℃ | |
| Ambient Humidity | 15-90% | |

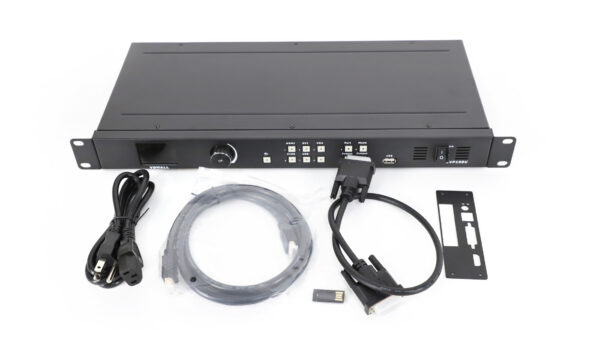

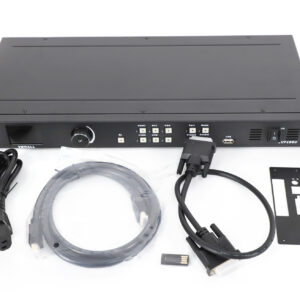

| Standard Accessory | 1.2M Power Cable×1 0.5M DVI Cable×1 1.5M HDMI Cable×1 User Manual × 1 USB Disk×1 |
|
