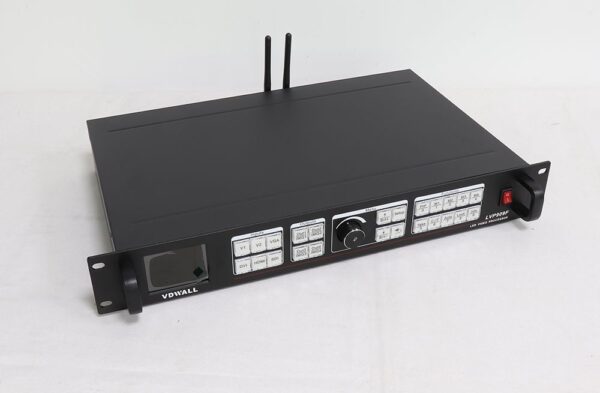

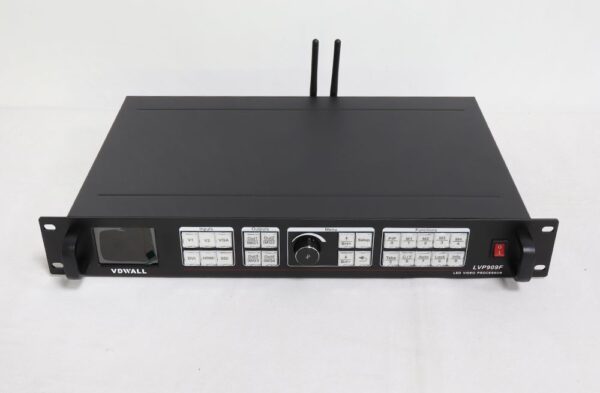

VDWALL LVP909F HD LED Video Processor With WIFI
$1,008.00
1. Seamless switching, Fade-in / Fade-out and wipe switching between any input signals. Multiple mixed analog
and digital inputs including 2xVideo, 1xVGA, 1xHDMI, 1xDVI, 1xSDI / HD-SDI / 3G-SDI
2. “TAKE” fast switching
3. Four sets of preset PIP display mode: seamless or fade-in / fade-out between modes switching
4. 4 windows in any size and overlay display. Display 4 input signals picture at the same time. Each picture size,
position and overlay order are adjustable
- Description
- Additional information
Description
Description
VDWALL LVP909F HD LED Video Processor With WIFI Features:
1. Seamless switching, Fade-in / Fade-out and wipe switching between any input signals. Multiple mixed analog
and digital inputs including 2xVideo, 1xVGA, 1xHDMI, 1xDVI, 1xSDI / HD-SDI / 3G-SDI
2. “TAKE” fast switching
3. Four sets of preset PIP display mode: seamless or fade-in / fade-out between modes switching
4. 4 windows in any size and overlay display. Display 4 input signals picture at the same time. Each picture size,
position and overlay order are adjustable
5. Max output resolution 3840x2400_60Hz. Outputs: 4 x DVI, 1 x VGA. Each DVI port can output max
1920x1200_60Hz
6. Preview monitor + Sync monitor
7. Wi-Fi wireless control + Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing
APP software in handheld device to monitor input signals. Meanwhile, wireless Wi-Fi controls the device to
switch signals and call modes
4 windows in any size and overlay display
Wi-Fi control + Wi-Fi video feedback monitor
Frame synchronous technology, no misaligment in high-speed motion pictures
VDWALL LVP909F HD LED Video Processor With WIFI Specification:
| Inputs | |||
| Number / Type | 2×Video
1×VGA（RGBHV） 1×DVI（VESA / CEA-861） 1×HDMI（VESA / CEA-861） 1×SDI / HD-SDI / 3G-SDI |
||
| Video system | PAL / NTSC | ||
| Composite Video Amplitude Impedance | 1V（p_p）/ 75Ω | ||
| VGA format | PC（VESA standard） | ≤2048×1152_60Hz | |
| VGA Amplitude Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | ||
| DVI format | PC（VESA standard） | ≤1920×1200_60Hz | |
| HDMI1.3（CEA-861） | |||
| HDMI format | PC（VESA standard） | ≤1920×1200_60Hz | |
| HDMI1.3（CEA-861） | |||
| SDI format | SMPTE259M-C
SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz
576i_50Hz 720p、1080i、1080p |
|

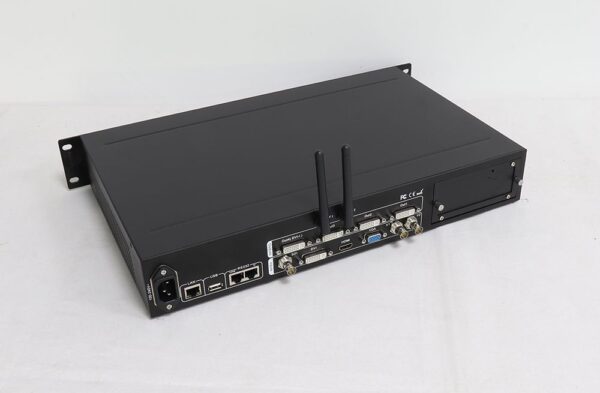

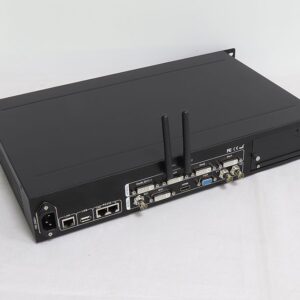

| Input connectors | Video：BNC
VGA：15pin D_Sub( female) DVI：24+1 DVI_D SDI：BNC/ 75Ω HDMI：HDMI port A type |
||
| Outputs | |||
| Number / Type | 4×DVI, 1×VGA(RGBHV)（Out4） | ||
| VGA / DVI format | 1024×768_60Hz
1280×1024_60Hz 1440x1440_60Hz 1920×1080p_50Hz/60Hz 1920×1200_60Hz |
||
| Output connectors | DVI OUT：24+5 DVI_I | ||
| Others | |||
| Control port | RS232 / USB / LAN / Wi-Fi | ||
| input voltage | 100-240VAC 50/60Hz | ||
| Power consumption | ≤45W | ||
| Environment Temperature | 0-45 ℃ | ||
| Environment Humidity | 15-85% | ||
| Product Size | 483(L) x 274(W) x 66.6(H)mm | ||
| Package Size | 520(L) x 350(W) x 130(H)mm | ||
| Net Weight | 4.2Kg | ||
| Gross Weight | 5.9Kg | ||
